In harsh working environments such as metallurgical plants, steel foundries, and offshore drilling rigs, hydraulic rubber hoses are highly susceptible to blistering and bursting caused by thermal radiation and molten weld spatter. In-house installation of fire-resistant PJ sleeves (PyroJackets) is often challenging due to a lack of specialized tools, frequently resulting in fibreglass fraying or improperly sealed insulation.
To resolve this issue, Vina Hydraulic Equipment Joint Stock Company (VHE) offers a comprehensive, door-to-door custom assembly service that includes cutting, hydraulic hose crimping, and PJ sleeve installation. Let's explore the professional technical workflow at VHE's assembly workshop!
1. Why Choose VHE's Hydraulic Hose Crimping and PJ Sleeving Services?
Instead of struggling with manual measuring, cutting, and sleeving, VHE's custom assembly service provides maintenance engineers with absolute peace of mind:
- Genuine materials & extensive size range: VHE maintains a ready stock of thousands of meters of heat-resistant thermal sleeves ranging from ID5 to ID150, accommodating all hose cross-sections.
- Technical assurance: We eliminate the fraying of fiberglass cut edges and securely seal the ends to prevent oil and grease from seeping back inside.
- Extensive experience: Boasting a team of highly skilled technicians with 10 to 13 years of hands-on experience, we flawlessly execute all assembly stages and process orders swiftly, ensuring complete customer confidence.

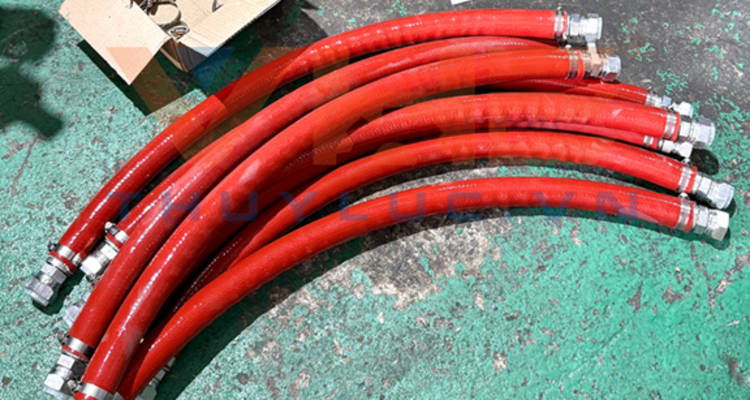

2. The Detailed 6-Step Custom Assembly Process for PJ Sleeving and Hose Crimping at VHE
To produce a complete hydraulic hose assembly capable of withstanding thermal shocks up to 1649°C, the VHE engineering team strictly follows a rigorous 6-step process:

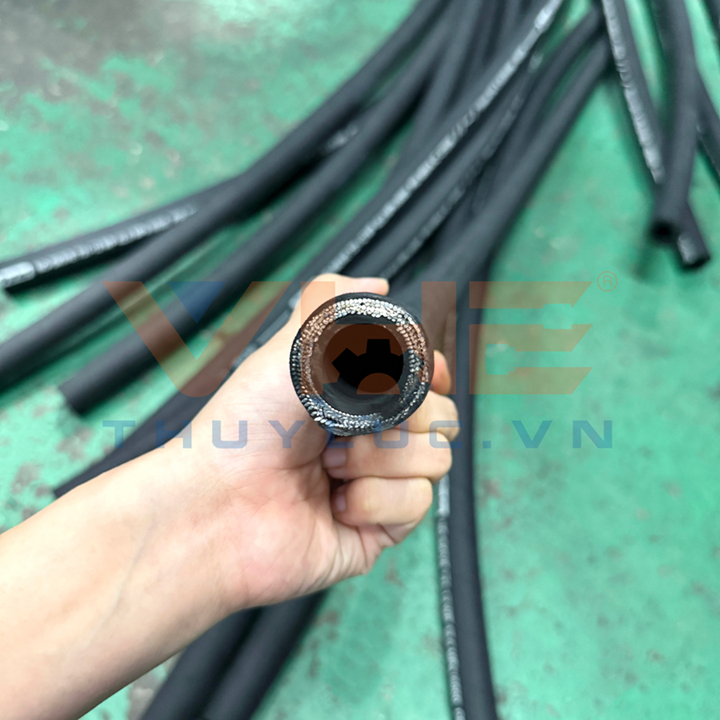

Step 1: Inspection, measurement, and hydraulic hose cutting. Technicians receive drawings or specifications from the customer, take precise measurements, and utilize an alloy-blade cutting machine to cut the hydraulic rubber hose. VHE guarantees a clean, perfectly flat cut without deforming the internal steel wire reinforcement.
Step 2: Clearance calculation and PJ fire sleeve cutting. Based on the outside diameter (OD) of the hose and fittings, engineers calculate and select the appropriate thermal PJ sleeve size (typically adding 1.5mm - 3.0mm of clearance). Then, using thermal shears or specialized tools, they cut the red silicone-coated fibreglass thermal sleeve, ensuring the cut edges remain intact without unravelling or fraying.
Step 3: Hydraulic Hose Crimping. Technicians assemble the ferrule and fitting onto the hose. The hose is then inserted into an automated hydraulic crimping machine. The crimping force is precisely calibrated according to the manufacturer's specifications, ensuring the fitting securely grips the hose's steel core without cracking or deforming the outer cover.

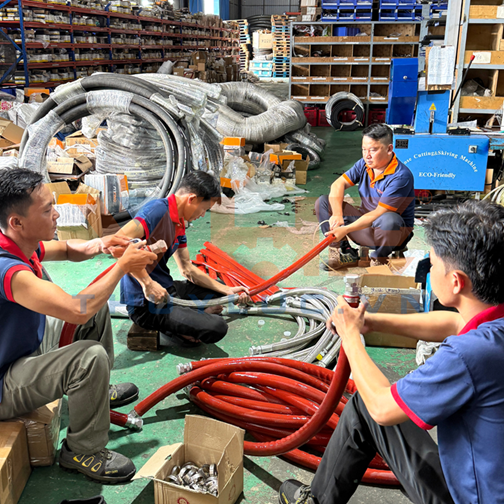

Step 4: PJ sleeve installation. After crimping, for short hose sections, technicians manually slide the sleeve on. For long hoses, VHE utilizes a compressed air system to create an air cushion within the gap, smoothly pushing the rubber hose through the thermal PJ sleeve without scratching or tearing the exterior silicone layer.
(Note: For assemblies requiring two 90° or 45° elbow fittings, technicians will crimp one elbow fitting first, install the PJ sleeve, and then proceed to crimp the remaining fitting).

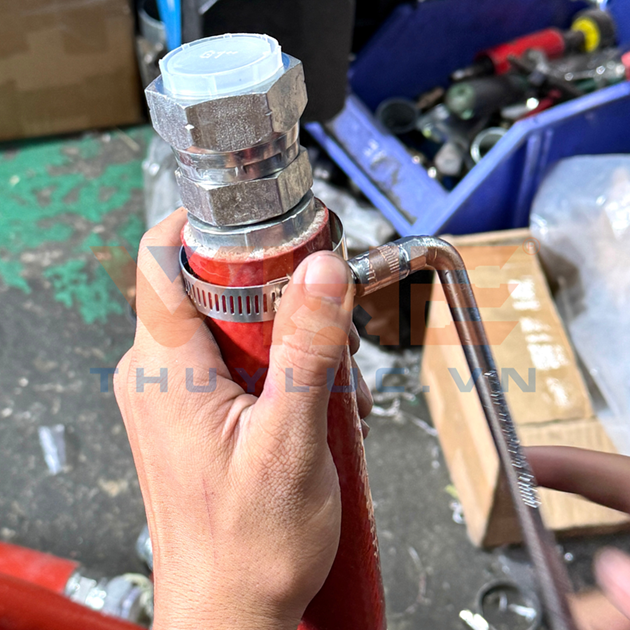

Step 5: Edge sealing and pre-delivery inspection. This is a highly critical step. Both ends of the fire-resistant sleeve are pulled tight against the nut, then securely locked in place using stainless steel hose clamps. This process effectively blocks dirt, water, and hydraulic oil from penetrating the internal insulation layer.

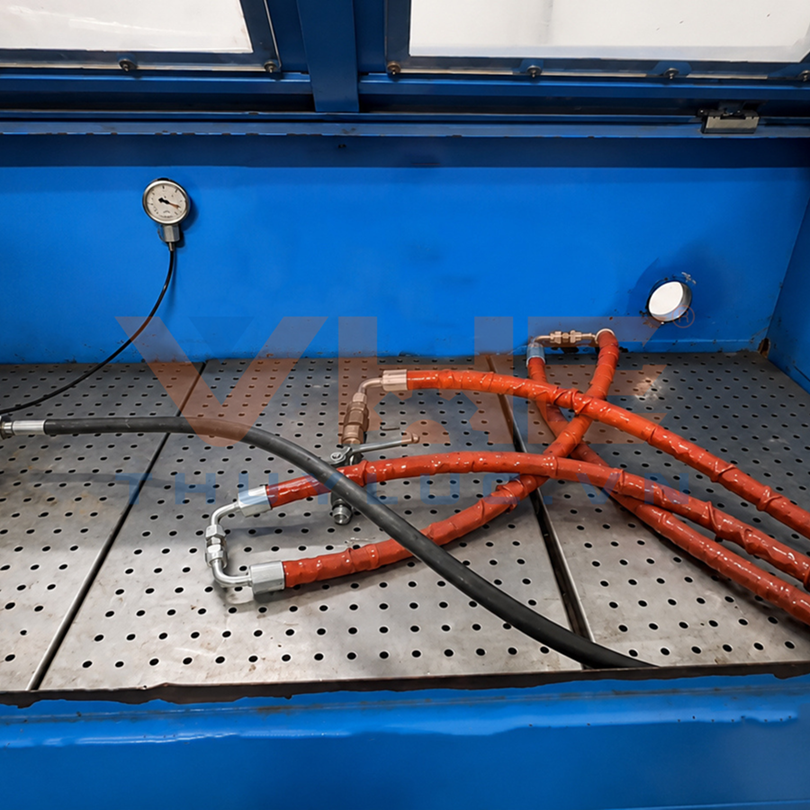

Step 6: Post-assembly pressure testing (Optional upon request). For systems requiring absolute safety, VHE offers an additional hydrostatic pressure testing service after assembly completion, if requested by the client. The sleeved hydraulic hose assembly is mounted on a specialized test rig and pressurized to the standard operating pressure (or beyond, according to technical specs). This process allows engineers to confirm absolutely zero leaks or oil seepage at the crimped joints. This is a premium quality assurance service that VHE provides for partners with stringent requirements.

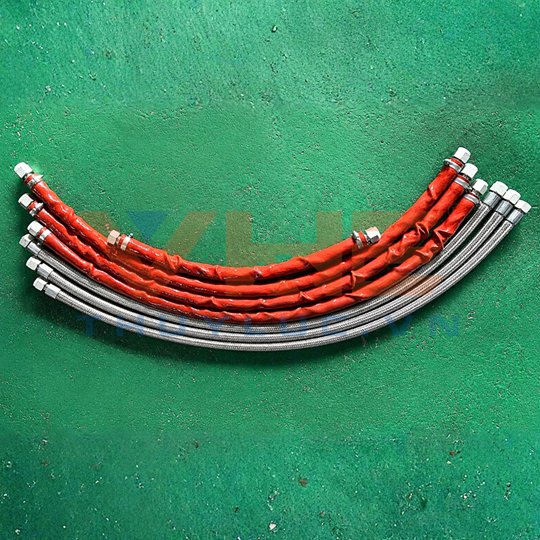

3. Advanced Solution: Dual-Layer Protection Service (304 Stainless Steel Mesh + PJ Sleeve)
In extremely harsh environments such as mining sites or the undercarriage of forging excavators, hydraulic hoses face not only high temperatures but also continuous mechanical abrasion and physical impacts.
VHE provides a Custom Dual-Layer Protection solution:
- Mechanical protection layer (Stainless Steel Mesh): The hydraulic hose is first sheathed in a braided 304 stainless steel wire mesh. This layer serves to resist abrasion, prevent scratches, deter rodent damage, and withstand heavy physical impacts.
- Fire-resistant thermal insulation layer (PJ Sleeve): Covering the stainless steel mesh is the fire-resistant PJ sleeve. This outermost layer acts as a barrier against thermal radiation, repels molten steel spatter, and resists chemicals.
This perfect synergy creates heavy-duty, high-pressure hydraulic hose assemblies, multiplying the system's lifespan and helping businesses save tens of millions in costly machine downtime and maintenance.
