2-wire hydraulic hoses are among the most common fluid transmission components in industrial and hydraulic systems, thanks to their excellent flexibility and high-pressure resistance. However, in harsh working environments prone to constant abrasion or heavy impact risks, installing an external steel spring guard becomes a mandatory solution to protect the hose, extending its lifespan and maximizing durability.

Many people wonder: "Is installing a steel spring guard on a 2-wire hydraulic hose really that simple?"

In reality, to produce a complete, perfectly fitted spring-guarded hydraulic hose assembly that won't slip and can withstand high pressure, technicians must follow a systematic process with precise steps. Let's explore the professional 7-step process of installing a steel spring guard with Vina Hydraulic Equipment Joint Stock Company (VHE) right below!

The Standard 7-Step Technical Process for Installing a Steel Spring Guard on a 2-Wire Hydraulic Hose

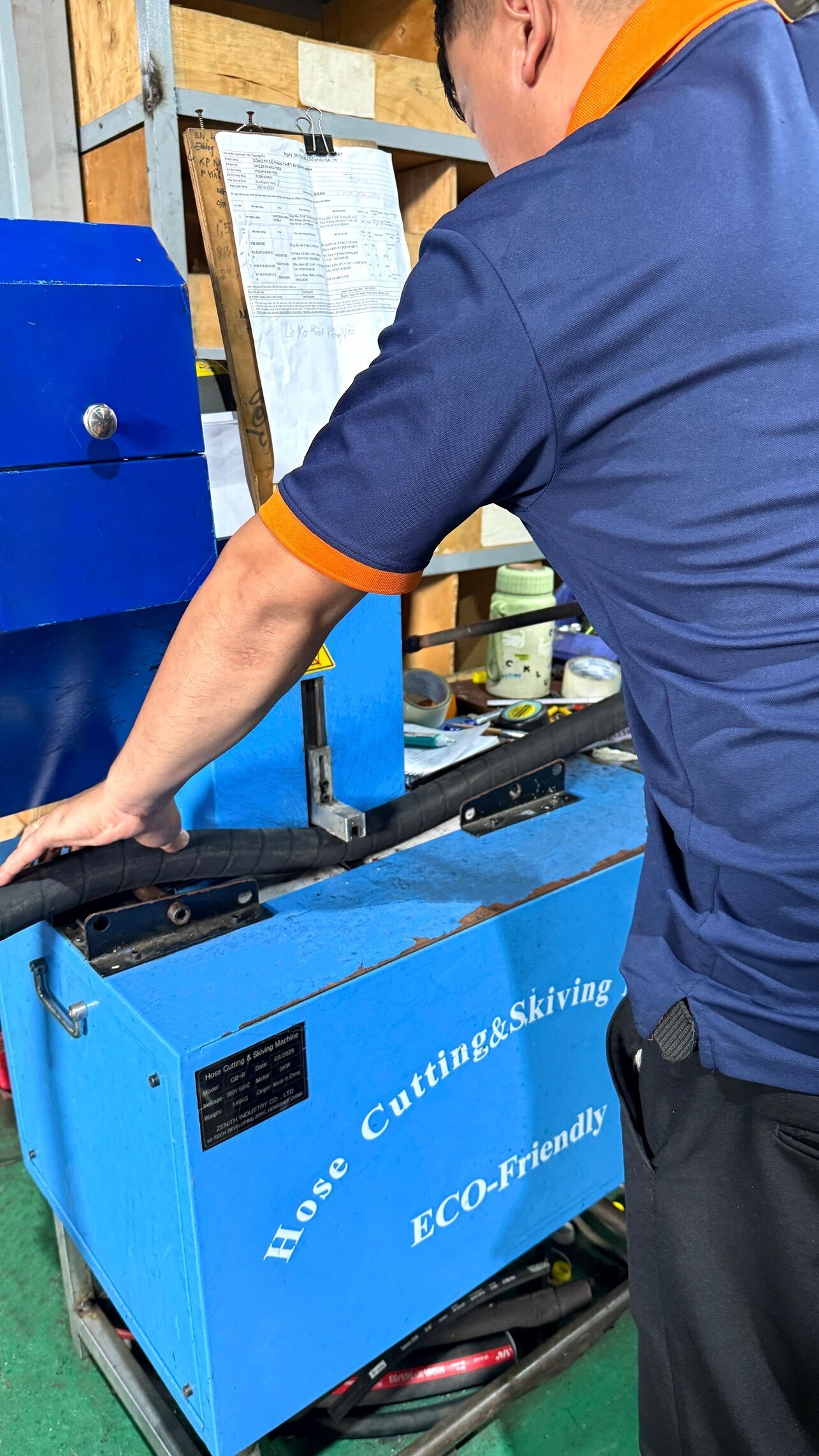

• Step 1: Hose Cutting

The first stage involves measuring and cutting the 2-wire hydraulic hose to the exact dimensions required by the order. Technicians use a specialized hose cutting machine to ensure a clean, perfectly square cut without fraying the internal structural layers.

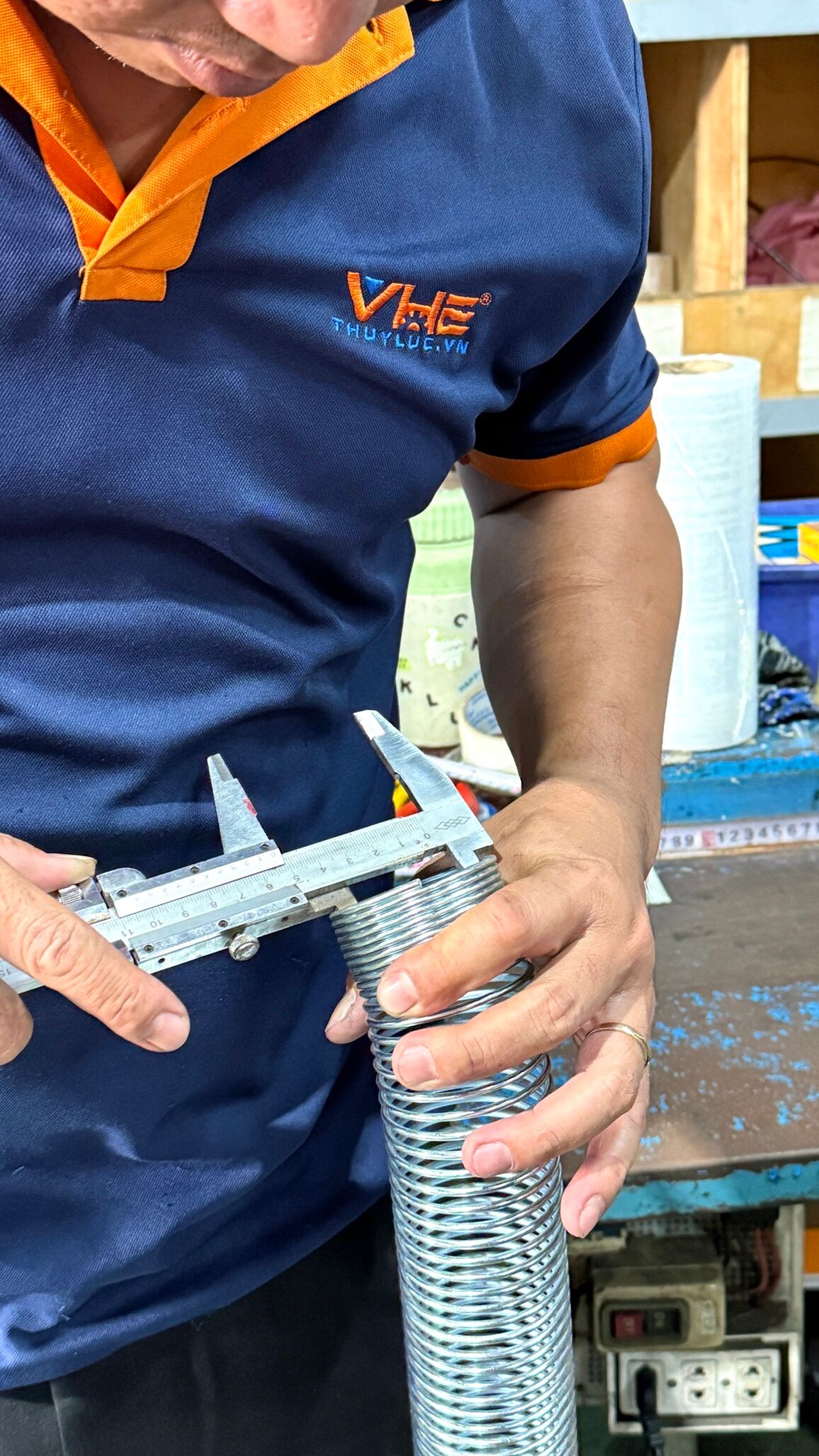

• Step 2: Measuring the hose diameter to select suitable fittings and ferrules

This is a critical step that requires high precision. Technicians use callipers to measure the outer diameter (OD) of the hose and the dimensions of the spring guard. Based on these parameters, VHE selects the absolutely compatible hydraulic fitting and ferrule to proceed with the assembly.

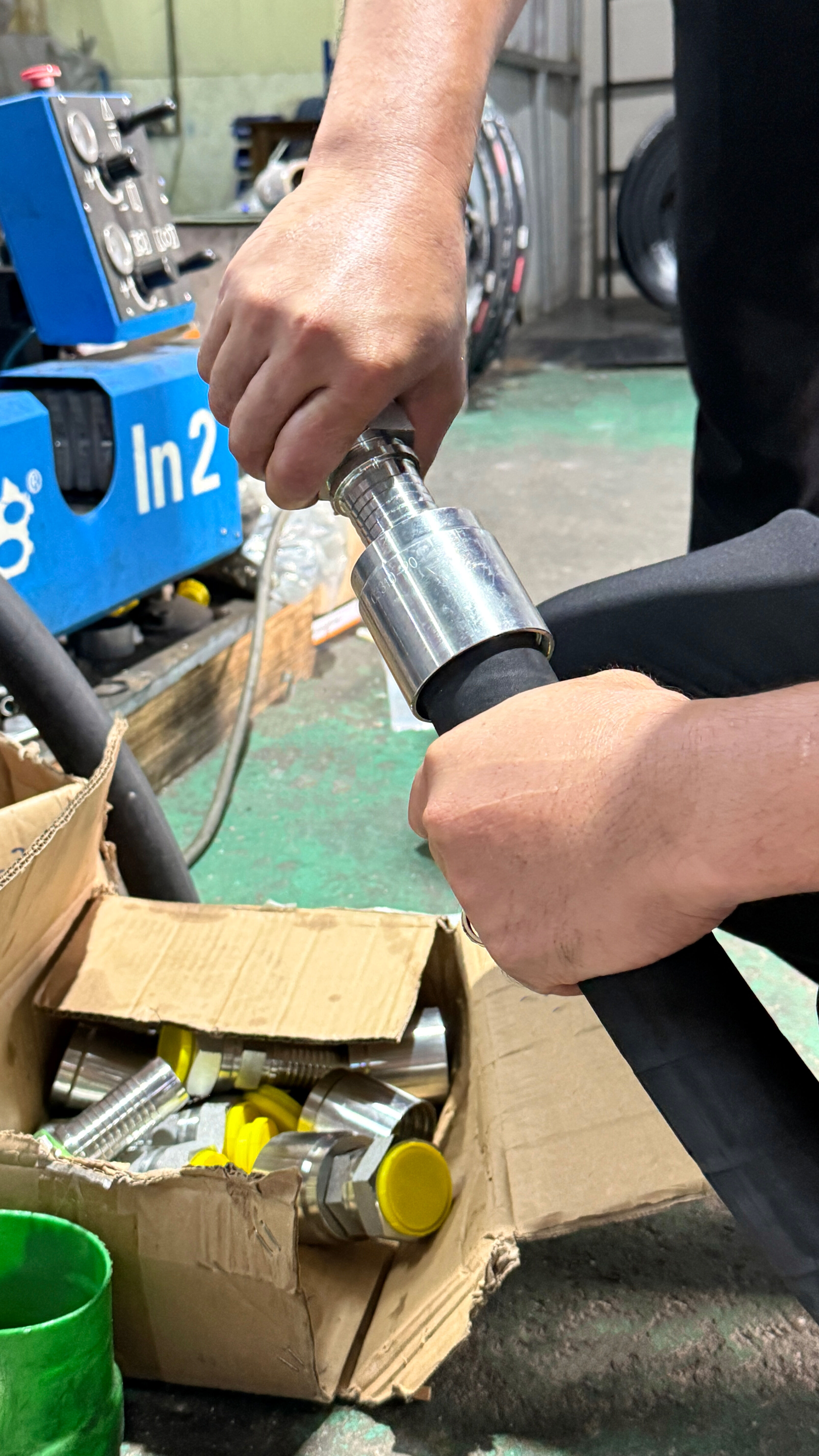

• Step 3: Inserting the fitting and ferrule

After selecting the appropriate components, the technician slides the ferrule onto the hose first, then expands and firmly pushes the hydraulic fitting into the hose tube. This step must ensure the fitting is fully inserted to the very end of the hose, creating maximum tightness.

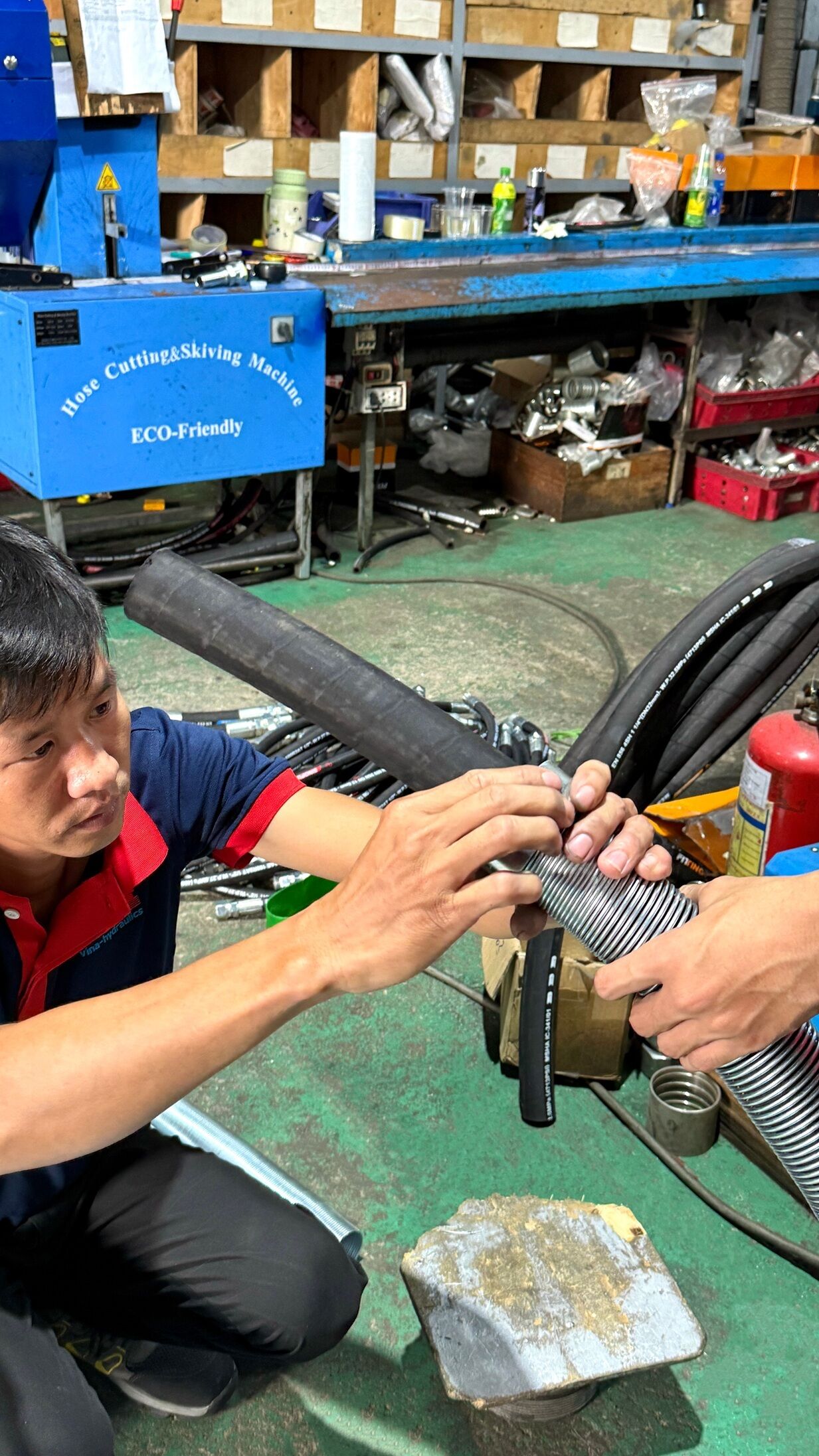

• Step 4: Sliding on the steel spring guard

Next, the steel spring guard is carefully slid over the hose to cover the entire exterior of the hose body. The size of the spring must fit perfectly—neither too loose nor too tight compared to the hose's outer diameter.

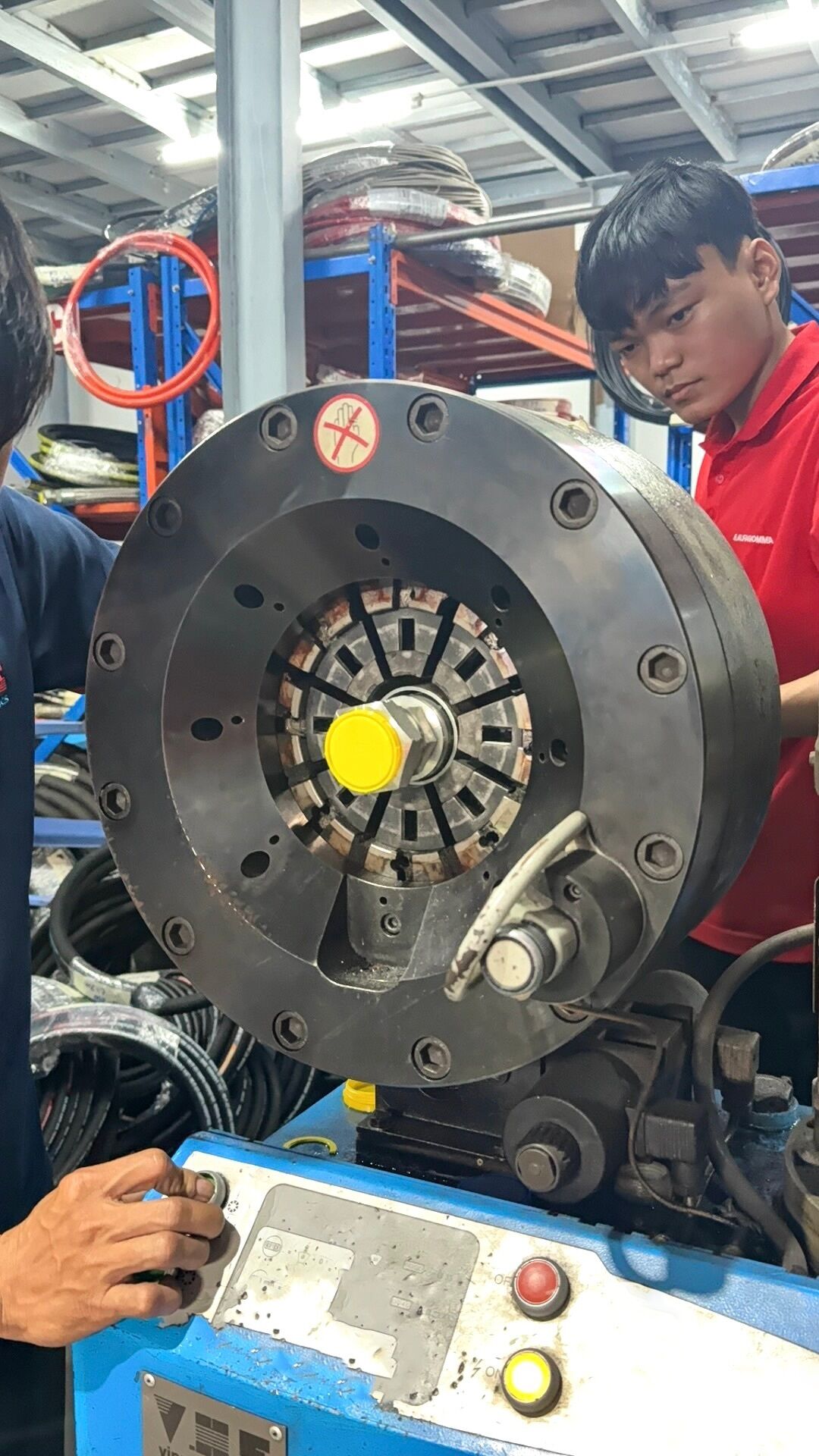

• Step 5: Crimping the hose with the primary ferrule

The hose end is placed into a specialized hydraulic crimping machine. The technician calibrates the parameters and tightly crimps the primary ferrule onto the hose body. The compression force of the crimper dies ensures the ferrule's teeth bite securely into the rubber cover and fitting, creating a leak-proof seal.

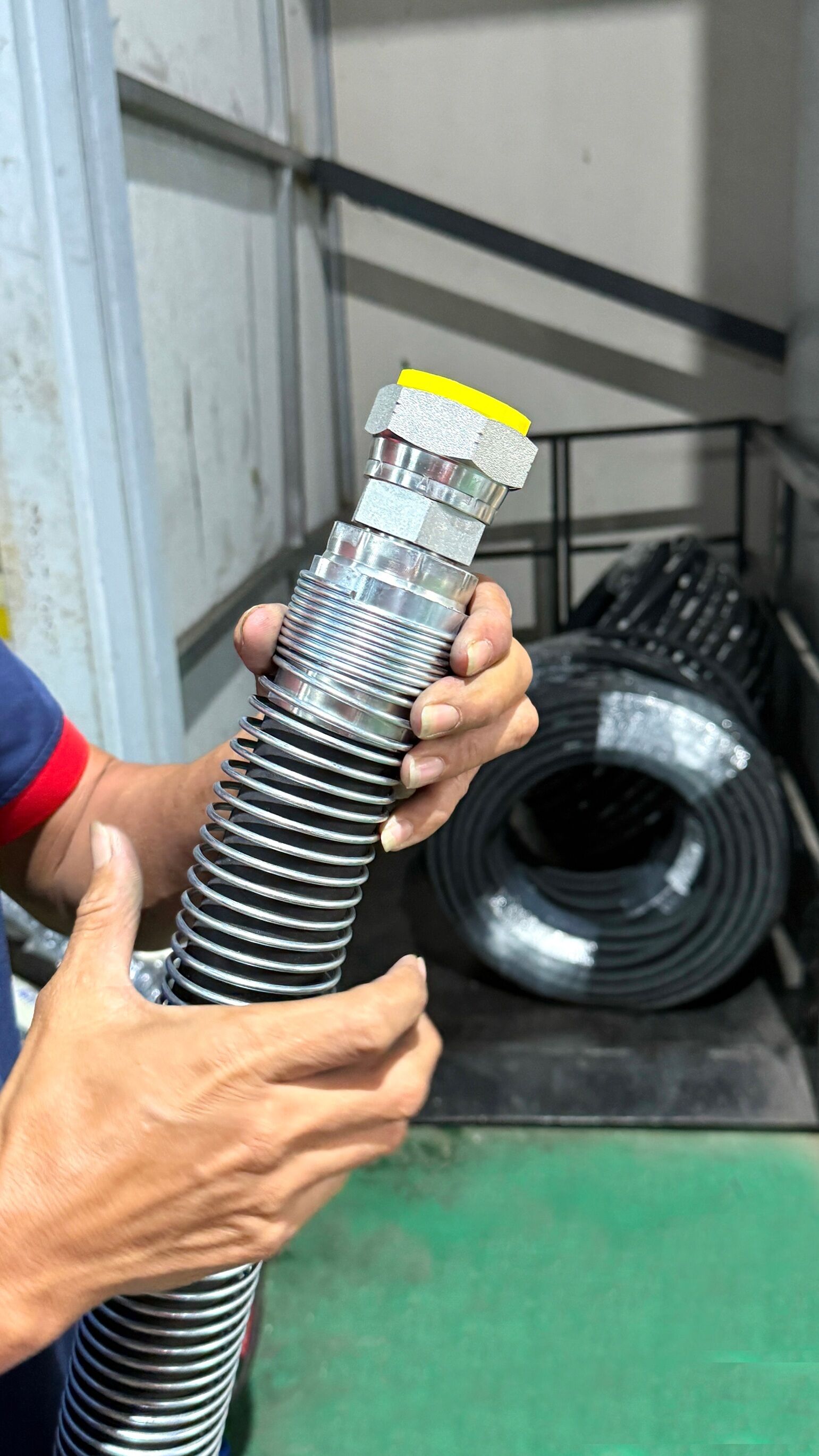

• Step 6: Crimping an additional ferrule collar to secure the steel spring

To securely fix the steel spring guard in place and prevent it from slipping or shifting during machinery operation, the technician proceeds to crimp an additional ferrule collar (spring guard retainer). This collar acts as a secure lock connecting the fitting and the steel spring guard.

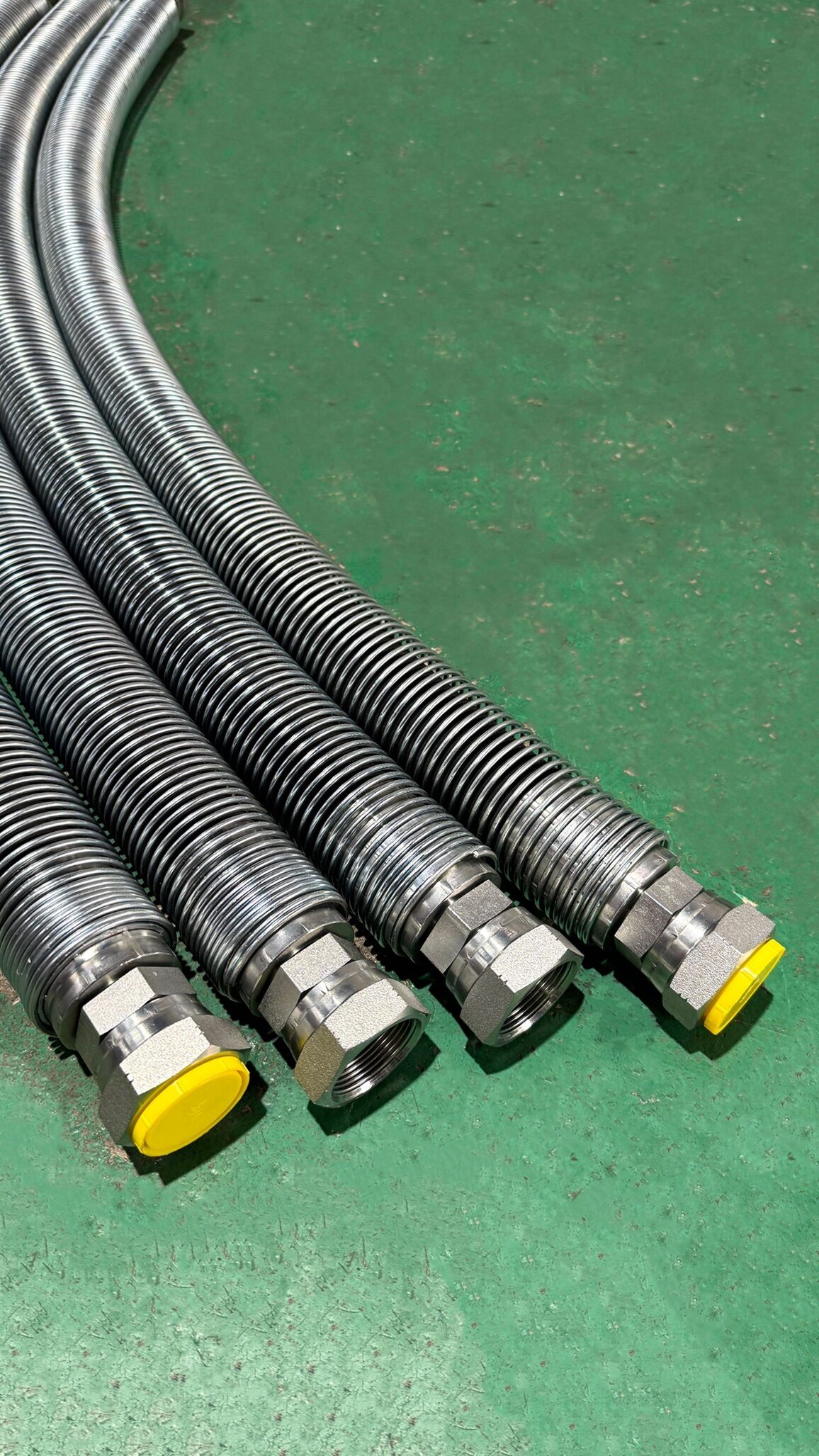

• Step 7: Finalizing the perfect fit of the spring guard and crimped joint

In the final operation, the technician conducts an overall inspection. At this point, the steel spring guard is perfectly wrapped, snug, and flawlessly integrated with the crimped joint, ensuring the highest standards of both technical performance and aesthetic appeal.

Actual processing of steel-spring guarded hydraulic hoses at VHE

Looking at the 7 steps, the process seems sequential and straightforward, but in reality, this work is not simple at all. Creating a standard-compliant product with zero oil leakage and securely fastened spring guards requires the support of modern machinery systems combined with the extensive experience of VHE technicians.

Proud to be a leading company in the field of mechanical and hydraulic equipment, Vina  Hydraulic Equipment Joint Stock Company (VHE) specializes in custom hydraulic hose assemblies, spring guard installation, and fire sleeve wrapping according to our customers' most stringent requirements. If your business is looking for a reputable, high-quality hydraulic hose assembly partner with competitive pricing, contact VHE immediately for prompt consultation and support!
