In heavy industrial environments such as metallurgy, steel casting, and mechanical manufacturing, hydraulic systems are constantly exposed to extreme temperatures. Heat-induced hydraulic hose bursts not only cause severe equipment damage but also pose a direct threat to workplace safety. So, what is the ultimate solution to this problem? The answer lies in specialized fire-resistant PJ sleeves.
1. Risks of Operating Hydraulic Hoses in High-Temperature Environments
Conventional hydraulic rubber hoses have a limited temperature tolerance. When installed in steel mills, foundries, or welding areas, they are continuously exposed to:
- Thermal radiation from furnaces.
- Molten metal splashes.
- Welding sparks and other localized heat sources.

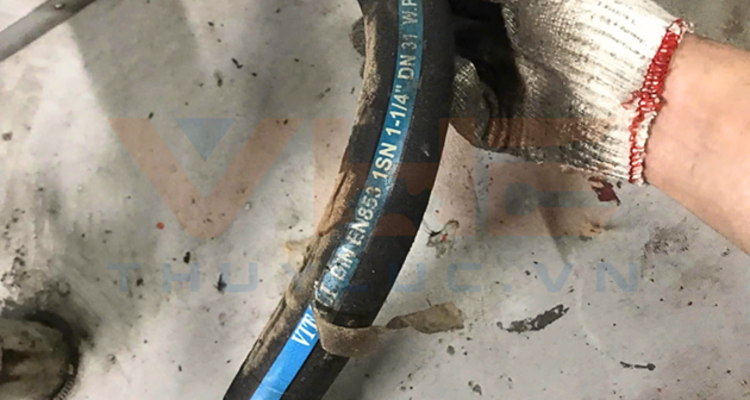

Under these impacts, the outer protective rubber layer of the hose rapidly ages, blisters, cracks, and loses its elasticity. This is the primary cause of the hose losing its pressure-bearing capacity, leading to sudden oil leaks or blowouts.
2. The Enormous Costs of Hydraulic Hose Failures
Many factories still utilize bare hoses or low-quality protective sleeves without fully evaluating the severity of potential incidents:
- Production Downtime: A single burst hose can force an entire multi-billion-dong production line to shut down for hours for troubleshooting and repairs.
- Fire Hazards: Hydraulic oil leaking under high pressure forms an atomized mist. When this mist comes into contact with sparks or molten metal, it can instantly erupt into a massive fire.
- Continuous Replacement Costs: Operating without fire-resistant sleeves severely reduces the lifespan of hydraulic hoses, multiplying material and maintenance labor costs.

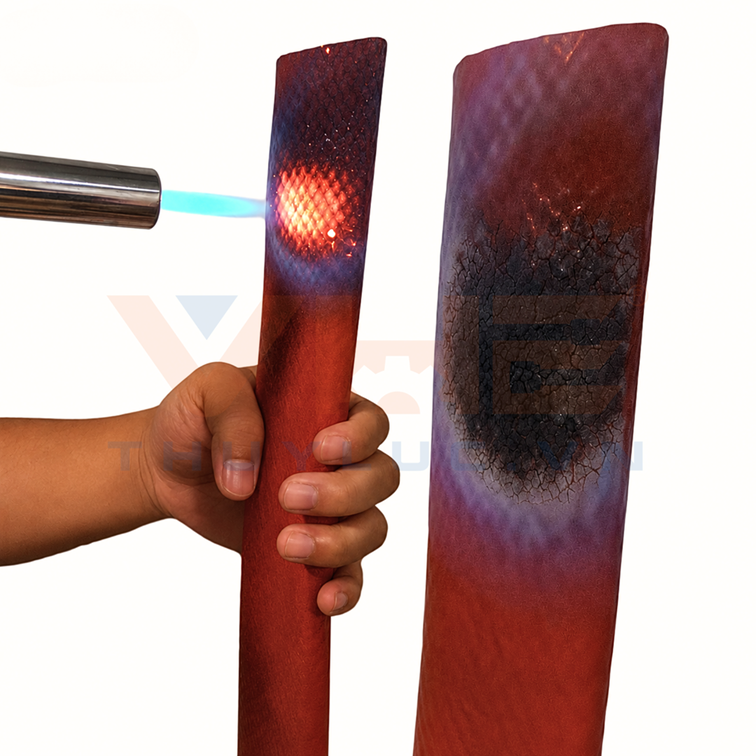

3. Fire-Resistant PJ Sleeves – The Ultimate Protective Solution

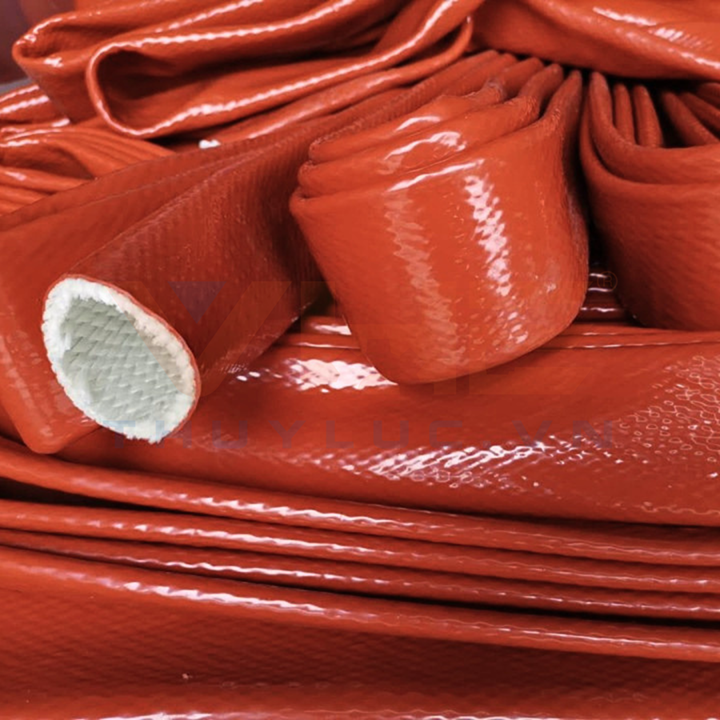

To eliminate the aforementioned risks, fire-resistant PJ thermal sleeves (also known as PyroJacket or Fire Sleeve) are a mandatory standard in heavy industrial systems. This is a red silicone-coated fibreglass thermal insulation sleeve with outstanding structure and technical specifications:
- Ultra-durable 2-layer construction: The inner layer is made of thick braided fibreglass, providing excellent thermal and electrical insulation (7kV - 25kV). The outer layer is coated with premium red silicone rubber, which is oil-resistant, abrasion-resistant, acid/alkali-resistant, and thoroughly prevents molten metal splash from adhering.
- Peak temperature resistance:
- Continuous operating temperature: 260°C (500°F).
- Withstands 1093°C (2000°F) for 15 - 20 minutes.
- Withstands thermal shocks up to 1649°C (3000°F) for 15 - 30 seconds.
Thanks to these properties, PyroJacket thermal sleeves help minimize heat energy losses and protect employees from burn injuries caused by accidentally touching hot pipes.
4. VHE - A Reputable Nationwide Wholesale & Retail Distributor of PJ Fire Sleeves
Vina Hydraulic Equipment Joint Stock Company (VHE) is proud to be a reliable supplier of fire-resistant PJ sleeves for numerous metallurgical plants, energy facilities, and OEM manufacturers nationwide.
To meet urgent maintenance needs and project schedules, VHE’s warehouse systems in the Ho Chi Minh City and Hanoi areas always maintain a massive inventory (up to thousands of meters) of various fire-resistant PJ sleeve sizes, ensuring continuity for your supply chain. Common sizes readily available in large quantities include:
- Size ID8 & ID10
- Size ID32
- Size ID41 & ID45
- Size ID51
- Along with a full range of other sizes from ID5 to ID150.

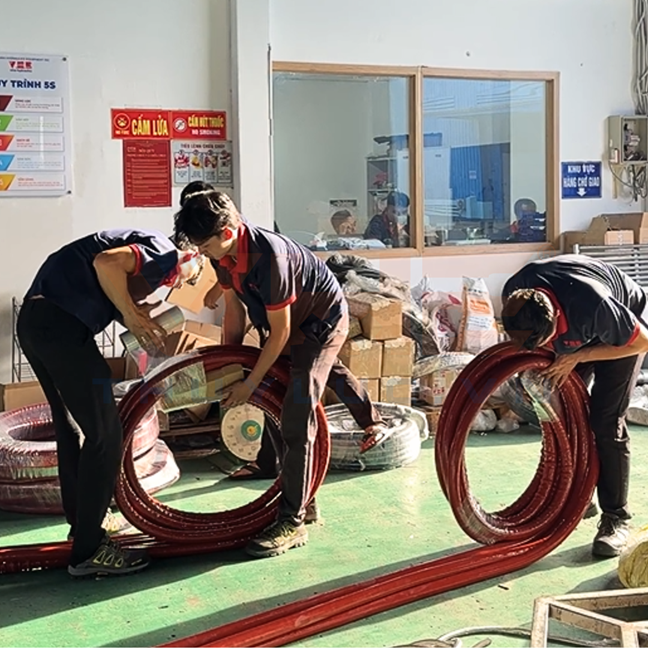

Professional Hydraulic Hose Assembly & Sleeving Services at VHE
Inserting fire-resistant PJ sleeves onto hydraulic hoses requires precise techniques to prevent the fiberglass from fraying and to ensure a tight seal at the connection points. At VHE, we offer comprehensive assembly services:
- Custom cutting and delivery according to requested lengths.
- Professional hydraulic hose crimping services.
- Accurate sleeving and securing of fire-resistant PJ sleeves and stainless steel braids, backed by full warranty policies so customers can install with peace of mind right upon receipt.
Protect your system today so you don't pay a heavy price for tomorrow's failures!
Factories and mechanical workshops looking to purchase fire-resistant PJ sleeves in bulk, or needing technical consultation for accurate sizing, please contact VHE's engineering team directly. Due to market fluctuations, we will assist in material quantity takeoff and provide detailed, competitive quotes tailored to your specific project.
Contact VHE now for quick consultation and material quotation!
