DN16 Alfagomma Hydraulic Hose Assembly with Vitillo JIC Straight Fittings

DN16 Alfagomma Hydraulic Hose Assembly with Vitillo JIC Straight Fittings

Vina—Hydraulic Equipment Joint Stock Company (VHE) has secured an order to manufacture 100 units of DN16 5/8" Alfagomma hydraulic hose assemblies featuring Vitillo JIC straight fittings.

Order Details:

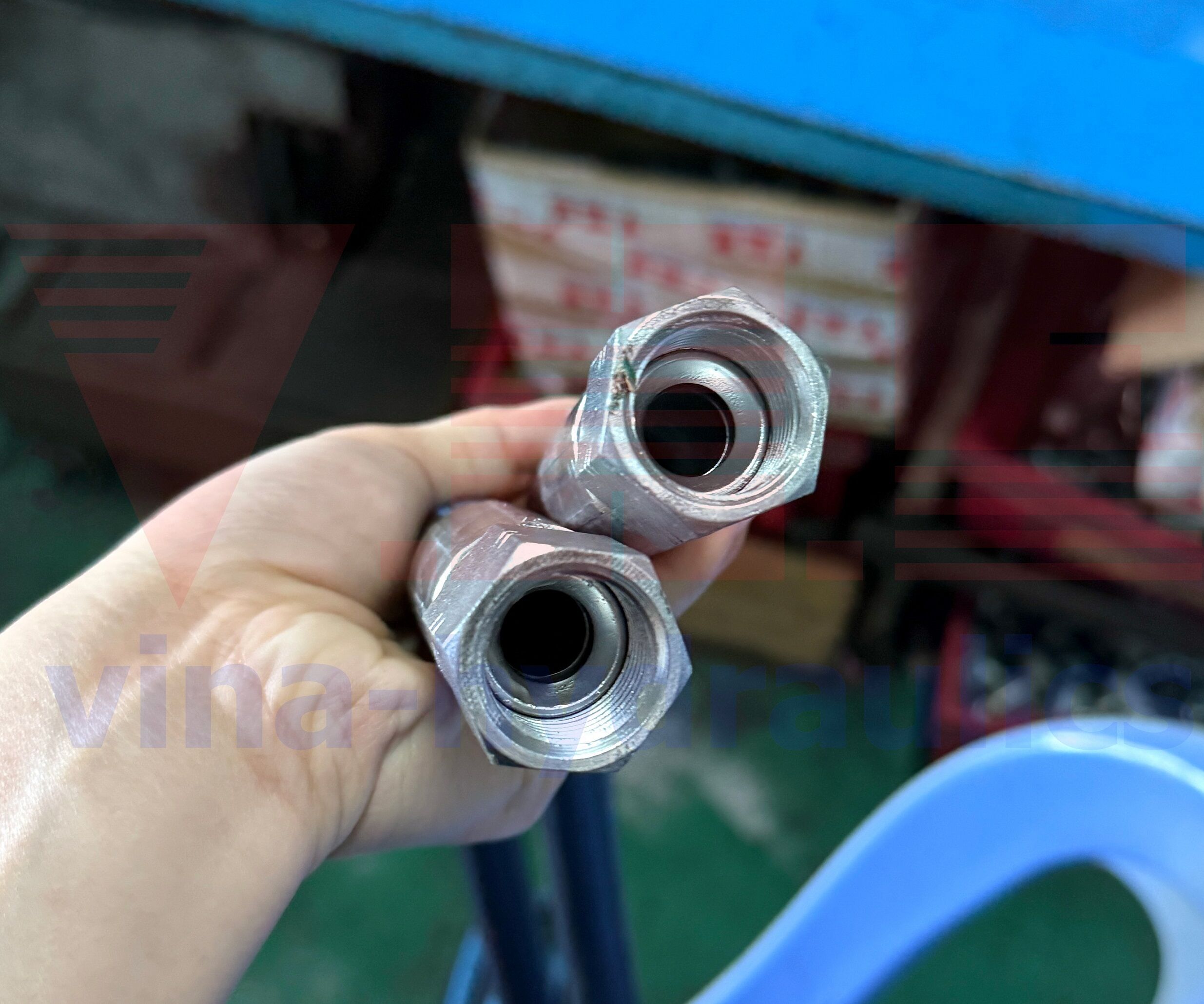

  • Alfagomma 2SN 2-layer hydraulic hose, 5/8", crimped with 5/8" FDJ1010SP Vitillo JIC straight fittings, L=1350mm.

DN18 Alfagomma Hydraulic Hose Assembly with Vitillo JIC Straight Fittings

DN18 Alfagomma Hydraulic Hose Assembly

Vitillo JIC Straight Fittings

DN18 Alfagomma Hydraulic Hose Assembly with Vitillo JIC Straight Fittings

In addition to the 5/8" size, VHE offers a diverse range of 2-layer steel braided hydraulic hoses, including:

  • FLEXOR 2SN-MT Hydraulic Hose, 1/4" - 400bar, 1002467
  • FLEXOR 2SN-MT Hydraulic Hose, 5/16" - 350bar, 1002468
  • FLEXOR 2SN-MT Hydraulic Hose, 3/8" - 330bar, 1002469
  • FLEXOR 2SN-MT Hydraulic Hose, 1/2" - 275bar, 1002470
  • FLEXOR 2SN-MT Hydraulic Hose, 3/4" - 215bar, 1002472
  • FLEXOR 2SN-MT Hydraulic Hose, 1" - 165bar, 1002473
  • FLEXOR 2SN-HF Hydraulic Hose, 1/4" - 400bar, 1001342
  • FLEXOR 2SN-HF Hydraulic Hose, 5/16" - 350bar, 1001343
  • FLEXOR 2SN-HF Hydraulic Hose, 3/8" - 330bar, 1001344
  • FLEXOR 2SN-HF Hydraulic Hose, 1/2" - 275bar, 1001345
  • FLEXOR 2SN-HF Hydraulic Hose, 5/8" - 250bar, 1001346
  • FLEXOR 2SN-HF Hydraulic Hose, 3/4" - 215bar, 1001347.

Alfagomma 2-Layer Hydraulic Hose Specifications:

- Standards: SAE 100 R2AT – ISO 1436-1 – EN 853 2SN

- Material: Oil-resistant synthetic rubber

- Reinforcement: 2 layers of high-tensile steel braid

- Code: 1002473

- Smooth cover, abrasion, and oxidation resistant

- Applications: high-pressure hydraulic systems, fuel oil, antifreeze solutions, air, and water.

- Temperature range: -40 °C to +100 °C (-40 °F to +212 °F) / Air maximum T = +70 °C (+160 °F)

VHE: Authorized Alfagomma Hydraulic Hose Distributor:

VHE is a leading authorized distributor of genuine Alfagomma imported hydraulic hoses in southern Vietnam. The company specializes in providing high-quality hydraulic hoses with competitive pricing and comprehensive warranty services.

For inquiries about Alfagomma hydraulic hoses, please contact VHE:

- Consultation & Support: 0903 967 588 - 0903 067 588

- Email: [email protected]

- Address: 127 Huy Can Street, Gia Hoa Residential Area, Phuoc Long B Ward, Thu Duc City, Vietnam.
