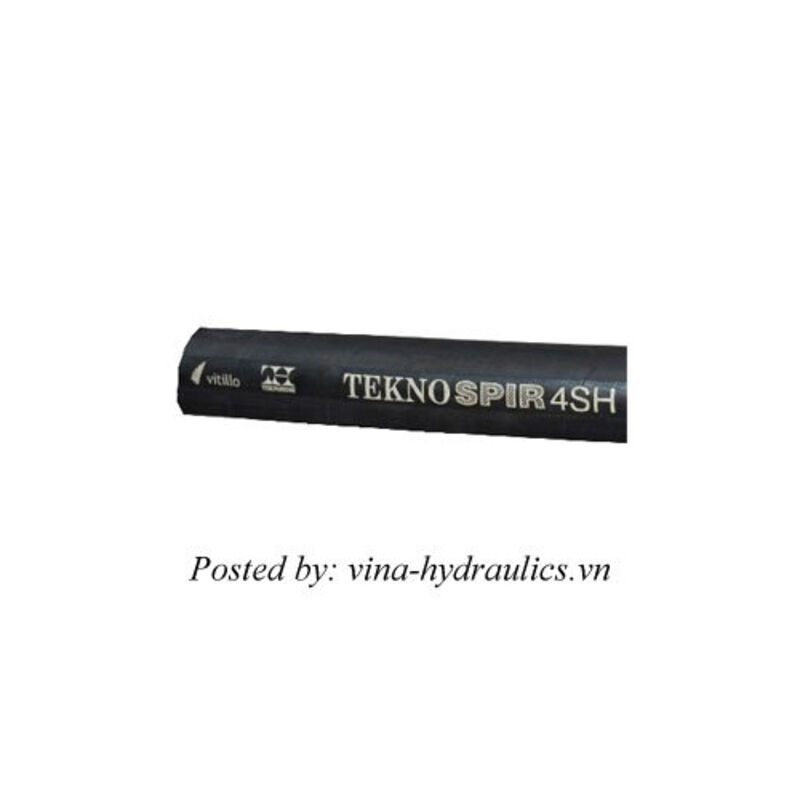

Ống Thủy Lực 4SH 1.1/2
Model.
TS4SH24
Giá bán
- Hãng sản xuất: Vitillo S.p.a - Tình trạng: Còn hàng
Hỗ trợ đặt hàng & tư vấn sản phẩm
THÔNG TIN SẢN PHẨM
| TEKNOSHIP/4SH |
| EN 856 4SH |
| Operating temperature range: -40°C +100°C |
| Qualified fluids: Mineral oils, glyco & polyglicol based oils, |
| systhetic ester based oils, water |
| Tube: Oil resistant synthetic rubber |
| Reinforcement: four high tensile steel spirals |
| Cover: black, oil and environment resistant synthetic rubber |
| Maker: Vitillo S.p.a - Italy |
| Item | Model | Ware spirals | Dimensions (mm) | Pressure (bar) | Weight | Part of Ferrule | ||||
| I.D (inch) | I.D (mm) | O.D(mm) | Bending | W.P | B.P | kg/mt | ||||
| 1 | TS4SH12 | 4 | 3/4" | 19,0 | 32,2 | 280 | 420 | 1680 | 1,600 | |
| 2 | TS4SH16 | 4 | 1" | 25,4 | 38,1 | 340 | 380 | 1540 | 1,950 | |
| 3 | TS4SH20 | 4 | 1.1/4" | 31,8 | 45,5 | 460 | 325 | 1400 | 2,450 | B4SH20 |
| 4 | TS4SH24 | 4 | 1.1/2" | 38,1 | 53,5 | 560 | 290 | 1200 | 3,410 | B4SH24 |
