During the operation of industrial machinery, marine vessels, or heavy equipment, fluid leakage at hydraulic connection points is a constant challenge for maintenance engineers. One of the most common causes of oil leaks and hose blow-offs is misalignment during the fitting selection and crimping process.
To thoroughly resolve this issue, high-standard systems today are shifting toward a more optimal solution. That is why at VHE, we always prioritize one-piece crimp fittings in our hydraulic hose assembly processes. So, from a technical perspective, what are the core differences that one-piece fittings bring?

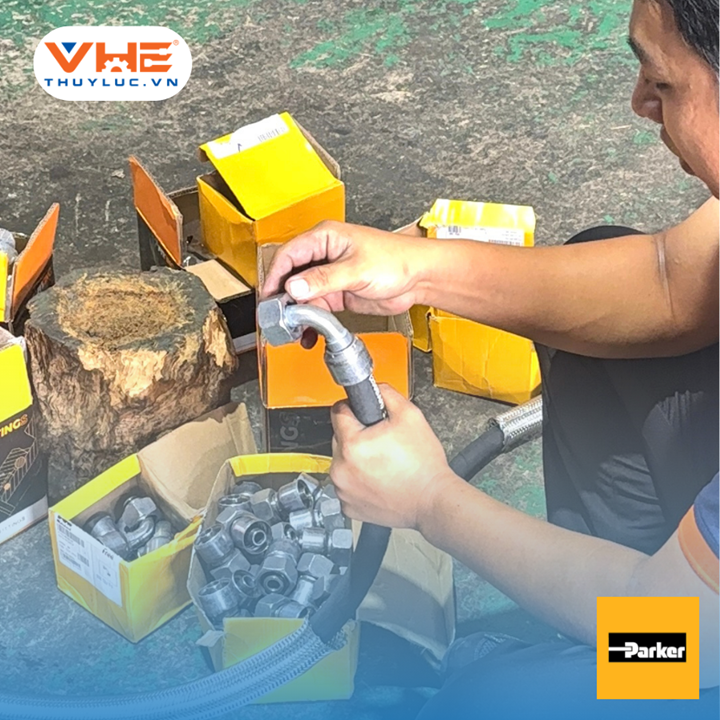

1. What is a one-piece crimp fitting?
As industry professionals know, hose fittings are generally divided into two main categories: two-piece fittings and one-piece fittings.

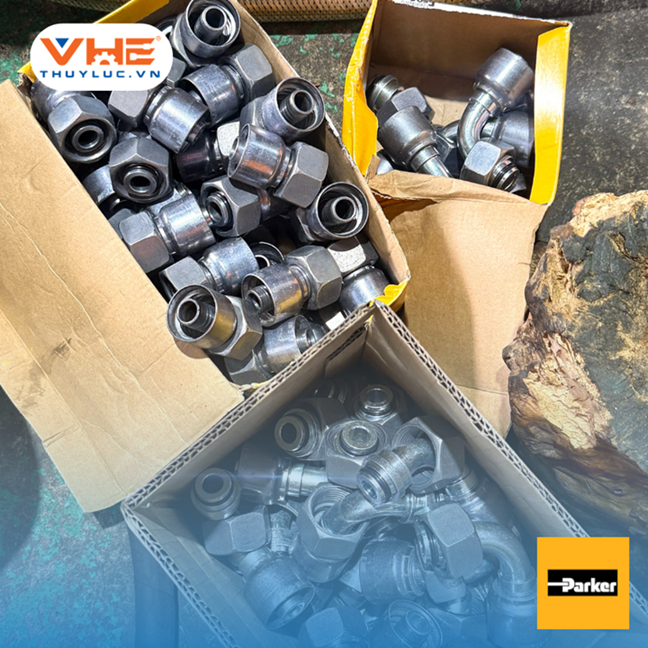

While a two-piece fitting consists of an insert (stem) and a ferrule as two separate components—requiring the technician to select the exact ferrule compatible with both the insert and the hose type—a one-piece fitting features a design where the ferrule is pre-crimped or integrally machined as a single unit with the insert.
2. 3 Technical reasons why one-piece crimp fittings are the top priority
Eliminating the risk of mismatched specifications: With two-piece fittings, pairing the wrong ferrule (e.g., using a ferrule meant for a 1-wire hose on a 2-wire hose) can easily occur if inventory management is poor. One-piece fittings eliminate 99% of this risk. The ferrule and insert are factory-assembled, ensuring absolute dimensional accuracy in accordance with stringent international standards such as DIN and ISO.

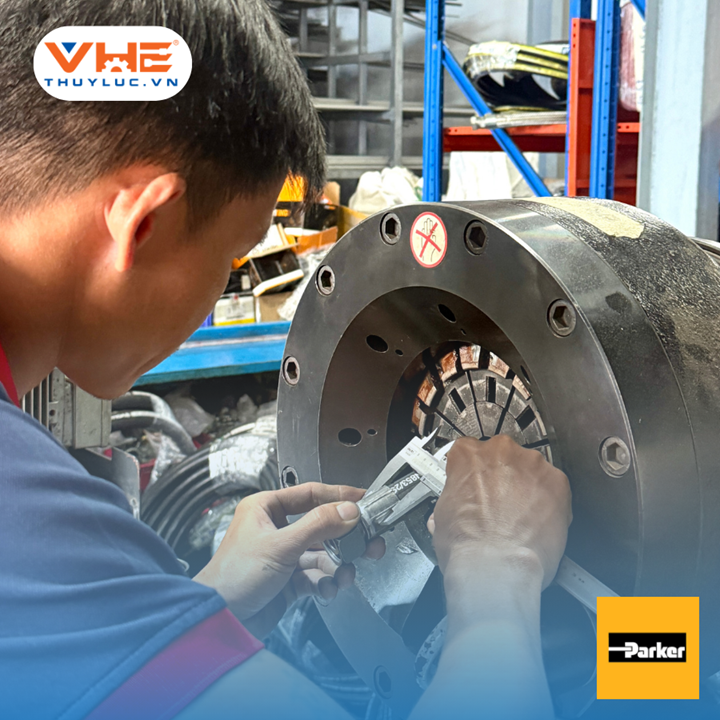

Ensuring concentricity and a perfect crimp profile: When placed into the crimping machine, the ferrule of a one-piece fitting slides and deforms evenly along the axis of the steel insert. This allows the crimp teeth to bite deeply and concentrically into the reinforcement wire layers of the hydraulic hose, creating a tight mechanical seal capable of withstanding continuous impulse pressure without cracking or bursting.
Optimizing assembly time and quality control: The one-piece design allows technicians to skip the ferrule positioning step. This fast and accurate operation ensures that the quality of 1,000 machined hoses is as uniform as a single one, easily meeting the strict schedules of large-scale assembly projects.

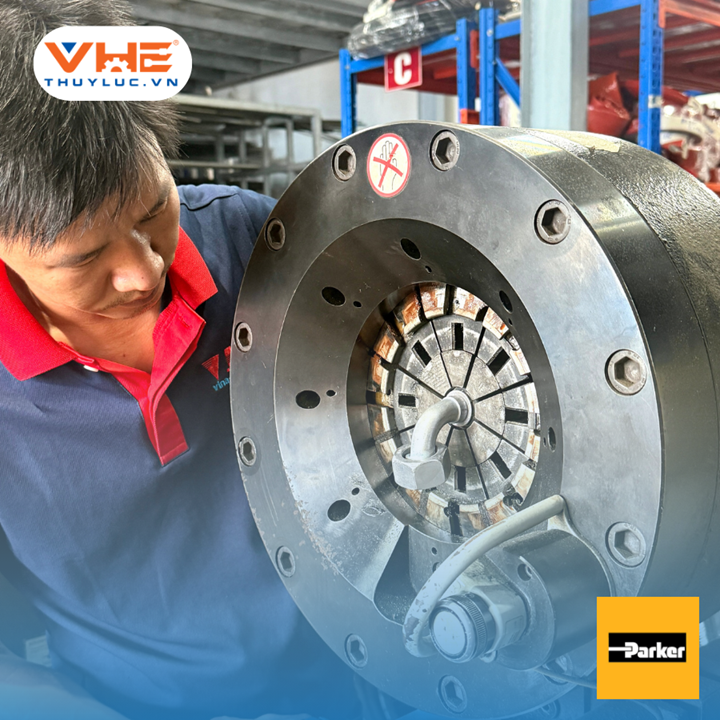

3. Practical Application: Assembling DIN-standard hydraulic hoses for heavy-duty systems.
Technical theory must always be proven in practice. Recently, the VHE team completed the mass assembly of high-pressure hydraulic hose assemblies for an industrial maintenance project. The highlight of this piping configuration is the synchronized combination of components that meet stringent standards.

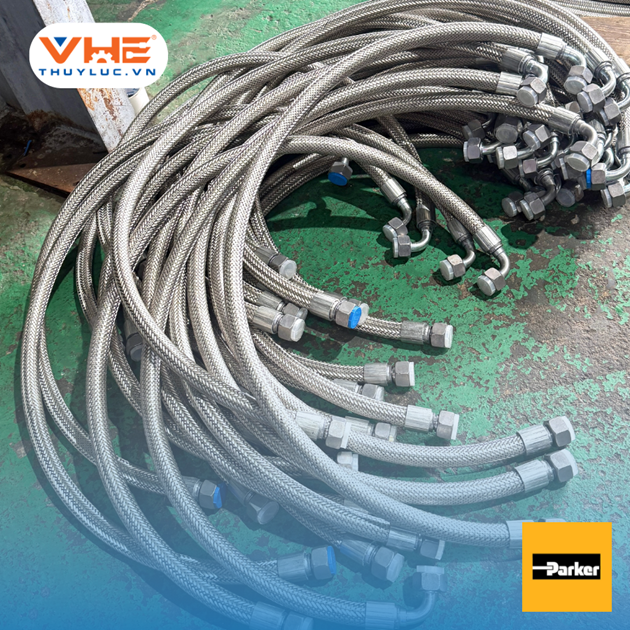

Specifically, the system utilized over 50 meters of Parker R2AT 5/8" (2SN-10) hydraulic hose—a hose featuring two layers of high-tensile steel wire braiding. To perfectly accommodate the working pressure of this system, we used a set of DIN-standard one-piece crimp fittings, size 5/8 inch - 20S series.
- The 20S (Heavy Series) under the DIN 2353 standard is a connection type specifically designed for applications involving extreme pressure and severe vibrations.
- Notably, because the project's working environment involved high external abrasion, the engineering team equipped the entire pipeline with a flexible stainless steel braided sleeve for exterior protection. This configuration, combined with matching one-piece fittings, created a connection assembly with maximum durability.
Conclusion: Prioritizing the use of one-piece crimp fittings is not merely a machining habit; it is a commitment to adhering to international technical standards (DIN/ISO). Although the initial investment cost for one-piece materials may be slightly higher, the value it delivers in terms of stability, leak prevention, and eliminating downtime costs makes it entirely worthwhile.
For customers needing to purchase one-piece fittings or requiring assembly services for hydraulic hoses, please contact VHE immediately for in-depth technical consultation!
