In industrial piping system design, managing vibrations and installation misalignments under normal conditions is challenging enough; however, maintaining stability in the harshest environments presents an even more formidable challenge.

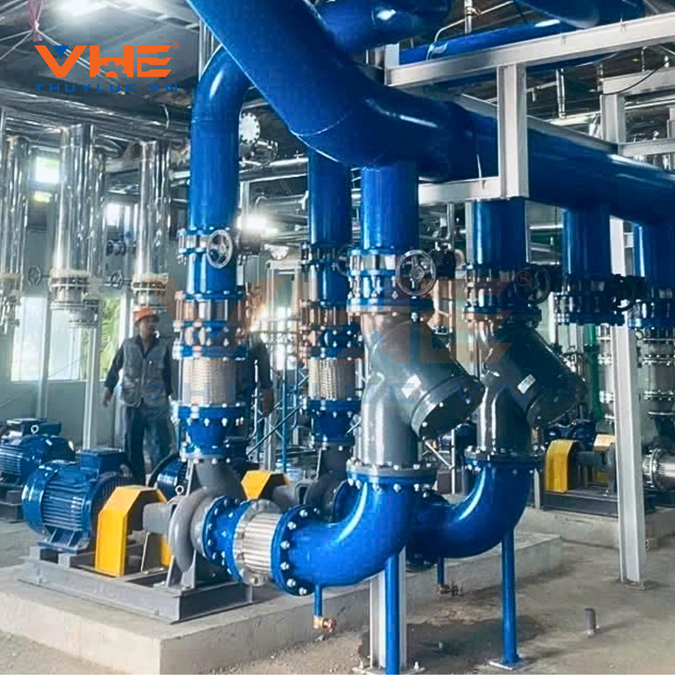

1. The Lifeline Piping Systems in Mega-Plants
Imagine a pipeline network transporting chemicals, thermal oil, or liquefied gases within power generation facilities or petrochemical refineries. This serves as the critical core of the entire production line. These systems must operate continuously 24/7, bearing the responsibility of circulating a stable flow of media to ensure uninterrupted progress and absolute safety for the entire industrial complex.
2. How Do Conventional Materials Perform?
In these systems, the stress placed on the piping goes far beyond the mechanical vibrations from pumps. The true enemies are extreme temperatures and pressures. A liquefied gas pipeline may have to withstand deep cryogenic temperatures below -216°C.
Conversely, systems conveying hot steam or thermal oil must operate at temperatures reaching hundreds of degrees Celsius. Under such drastic temperature differentials, severe thermal expansion occurs. If rigid pipes or conventional rubber hoses are utilized, the system will rapidly face severe risks:
- Weld cracking and fracturing due to thermal stress.
- Pipeline bursting caused by pressure spikes reaching hundreds of bars.

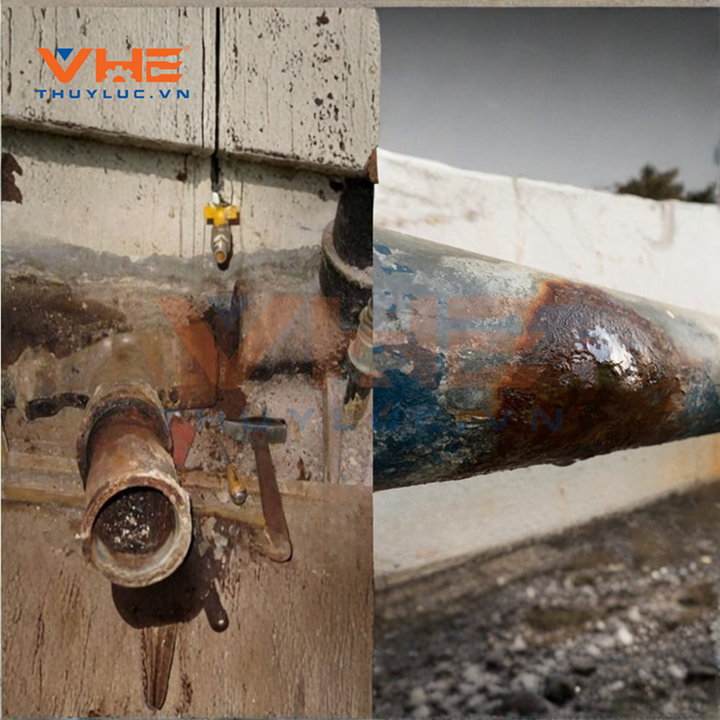

- Chemical leakage resulting in occupational safety disasters and forcing a complete shutdown of the production line.
At this point, engineers require a connection component flexible enough to absorb thermal expansion, yet robust enough to withstand destruction by extreme heat and pressure.

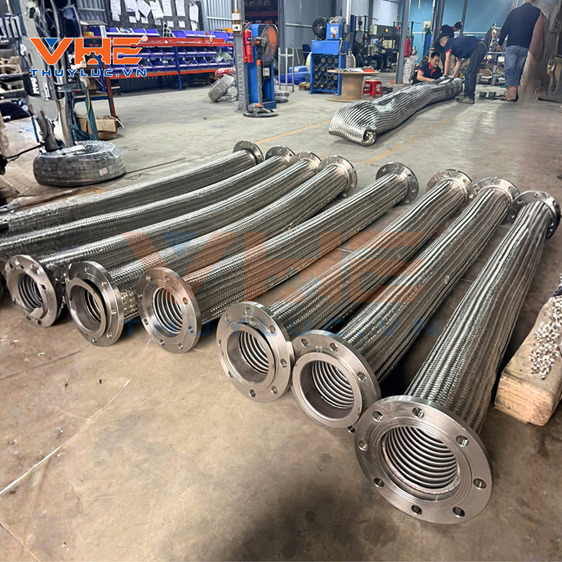

3. Stainless Steel Flexible Metal Hoses – The Perfect Protective Armour from VHE
To completely resolve this issue, stainless steel flexible hoses are the ultimate solution. With a corrugated core made from high-grade stainless steel (SUS304, SUS316...) combined with 1 or 2 outer protective braided mesh layers, this product delivers incredible resistance in extreme conditions:
- Connection Section (Flange Attachment): Through specialized TIG welding, the corrugated hose is fabricated and integrated with two flange ends (commonly adhering to BS 4504, JIS B2220, and ANSI B16.5 standards). The sealing mechanism, which uses a gasket pressed between the two flanges, ensures a tight grip on the factory's rigid piping, preventing any media leakage.
- Cryogenic Applications: For deep cryogenic sectors such as liquid Nitrogen, liquid Oxygen, or liquid Argon filling, the stainless steel flexible hose is equipped with quick couplings. The sealing connection mechanism utilizing copper O-rings helps the system operate safely without embrittlement at cryogenic working temperatures down to over -200°C.
- Ultra-High Temperature Applications: In chemical or paper plants where media temperatures can reach up to 350°C, plastic or rubber hoses would melt. However, when utilizing a stainless steel corrugated hose combined with a concave conical threaded weld fitting (BSP or JIC) sealed by metal-to-metal surface contact, the flexible joint maintains astonishing durability.
- Massive Pressure Applications: Thanks to the reinforced stainless steel braided mesh, the hose can operate in conditions ranging from a vacuum up to pressures of hundreds of bars. This braided layer acts as the primary load-bearing component, ensuring absolute safety during pressure shocks in systems conveying oil, gas, or powder mixtures.
- Strict Hygiene Requirement Applications: Beyond mechanical and physical factors, stainless steel flexible hoses are the number one choice for food and pharmaceutical plants, thanks to the use of sanitary flange fittings (SMS or DIN standards). The stainless steel surface is easy to clean and does not react with chemicals, ensuring the strictest sterile standards.

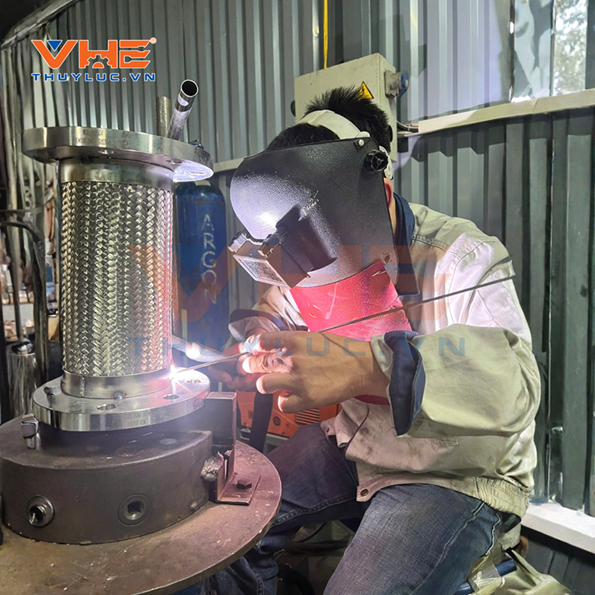

Standard Technical Fabrication of Stainless Steel Flexible Hoses at VHE
The quality of a flexible hose assembly lies not only in the core hose material but also in the welder's craftsmanship during fitting fabrication. At VinaHydraulic Equipment Joint Stock Company (VHE), we strictly adhere to the fabrication process, from trimming and TIG welding (joining the braid and core) to pressure testing before shipment.
Is your system struggling in a harsh environment? VHE provides stainless steel flexible hoses that are precisely measured and fabricated to meet your plant's actual requirements.
