In the metallurgy and steel casting industries, working environments are constantly subjected to extreme temperatures. Without specialized fire-resistant sleeves, hydraulic systems in these facilities are highly prone to continuous failures, leaks, and blowouts. So, why have PJ sleeves become the mandatory material standard for protecting systems in steel plants? Let's delve into the details.
1. The Risks of Hydraulic Hose Blowouts

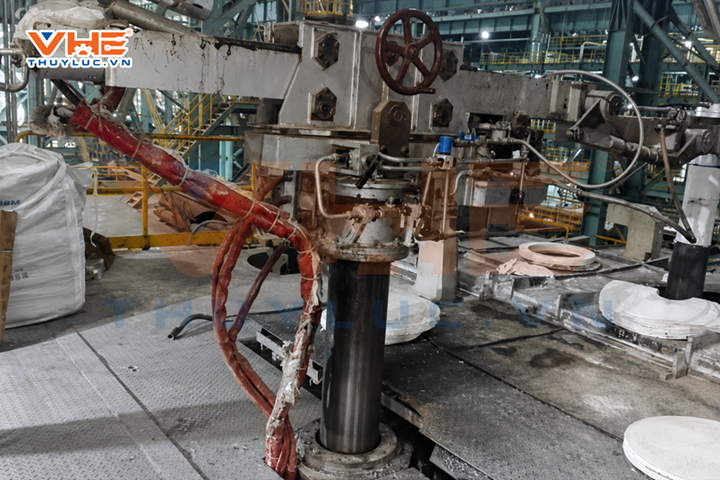

In areas such as furnaces, steel rolling mills, or foundries, the ambient temperature is consistently extremely high, accompanied by continuous splashes of molten metal slag and welding sparks. When exposed to this environment, standard rubber hydraulic hoses will rapidly suffer from destructive impacts:
- Aging and cracking of the outer protective rubber cover.
- Thermal blistering, which destroys their ability to withstand internal static and dynamic pressures.
- Adhesion of molten steel slag, causing pinholing and puncturing of the hose wall.
The inevitable consequence is the leakage of highly pressurized hydraulic oil, posing an extremely severe fire hazard and bringing the entire production line to a halt. The lack of proper fire-resistant sleeves causes the plant's maintenance and material replacement costs to multiply significantly.
2. The Protective Capabilities of Fire-Resistant PJ Sleeves

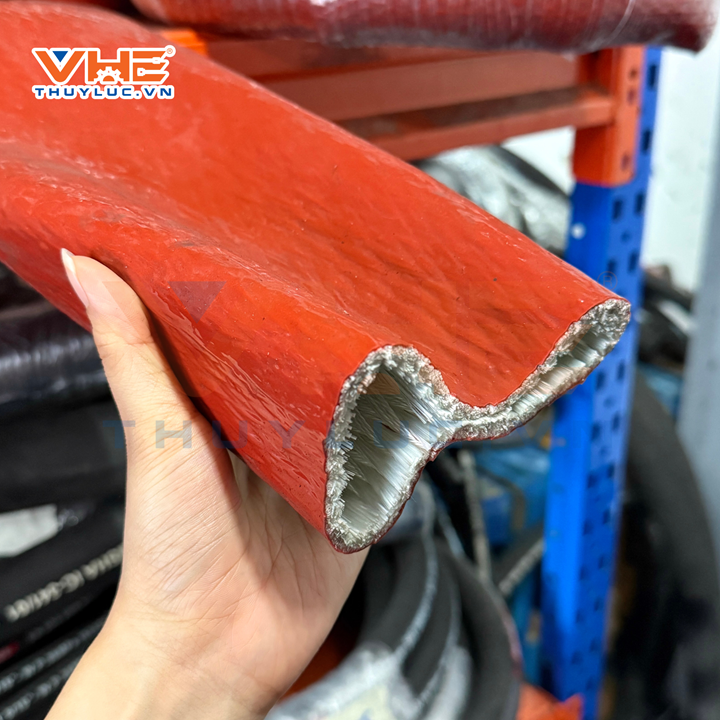

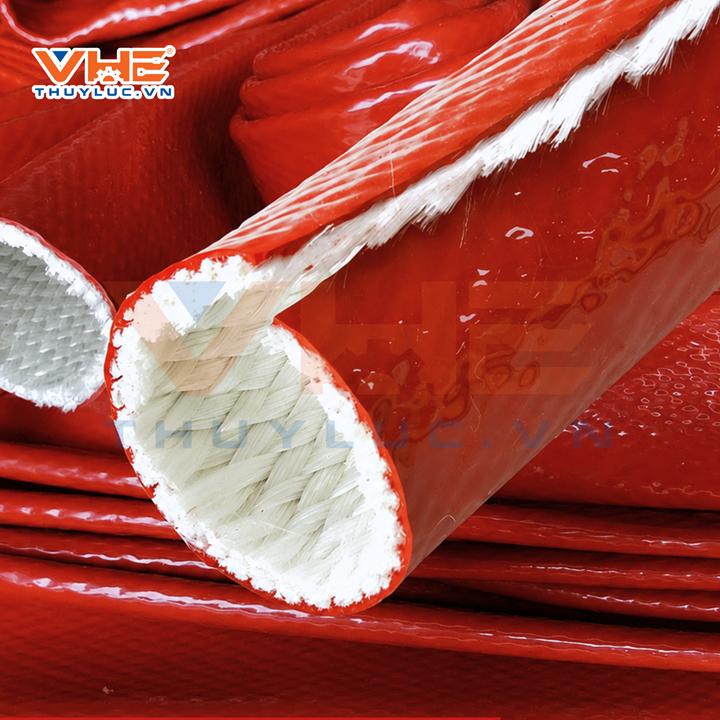

To completely resolve the aforementioned risks, fire-resistant PJ thermal sleeves (also known as PyroJacket or Fire Sleeve) are utilized as a perfect protective shield. This red silicone-coated fibreglass thermal insulation sleeve features a breakthrough two-layer construction:
- Inner layer: Made from dense, thick knitted fiberglass, providing excellent thermal insulation and dielectric strength (7kV - 25kV).
- Outer layer: A premium silicone rubber coating that is oil-resistant, abrasion-resistant, and acid/alkali-resistant. Most importantly, it completely prevents coal slag and molten metal from adhering to the hose cover.
Thanks to this superior material composition, the fire-resistant PJ sleeve boasts impressive operational specifications:
- Continuous operating temperature: 260°C (500°F).
- Withstands temperatures of 1093°C (2000°F) for a duration of 15 - 20 minutes.
- Notably, it can withstand thermal shocks up to 1649°C (3000°F) for 15 - 30 seconds upon direct contact with molten steel slag.
3. The Dual Benefits of Using Heat-Resistant Sleeves in Metallurgical Production Lines
Equipping the system comprehensively with fire-resistant PJ sleeves brings tangible benefits to plant operations:
- Ensuring absolute workplace safety: Prevents burn injuries to engineers and workers caused by accidental contact with hot pipes. Additionally, it eliminates the fire risk associated with leaked hydraulic oil coming into contact with sparks.
- Optimizing maintenance costs: Fire-resistant PJ insulation sleeves help maximize the lifespan of rubber hose assemblies and electrical cables, thoroughly minimizing the downtime of mechanized systems.
- Reducing energy loss: PJ thermal sleeves help maintain stable fluid temperatures within the transmission system, ensuring that equipment operating efficiency remains consistently high.
4. VHE - A Reputable Nationwide Wholesale & Retail Distributor of Fire-Resistant PJ Sleeves
Vina Hydraulic Equipment Joint Stock Company (VHE) is a professional distributor of fire-resistant PJ sleeves, supplying numerous large and small steel mills, power plants, and mechanical machining workshops nationwide.
To meet urgent material replacement schedules, VHE's warehouse systems always maintain a massive inventory (up to thousands of meters) of common sizes, ensuring uninterrupted supply chains for your facilities. Our readily available size ranges include:
- Small sizes: ID8, ID10, ID13, ID16, ID22.
- Medium sizes: ID32, ID40, ID45, ID51.
- Large sizes: ID65, ID102. (The full size range spans from ID5 to ID150).

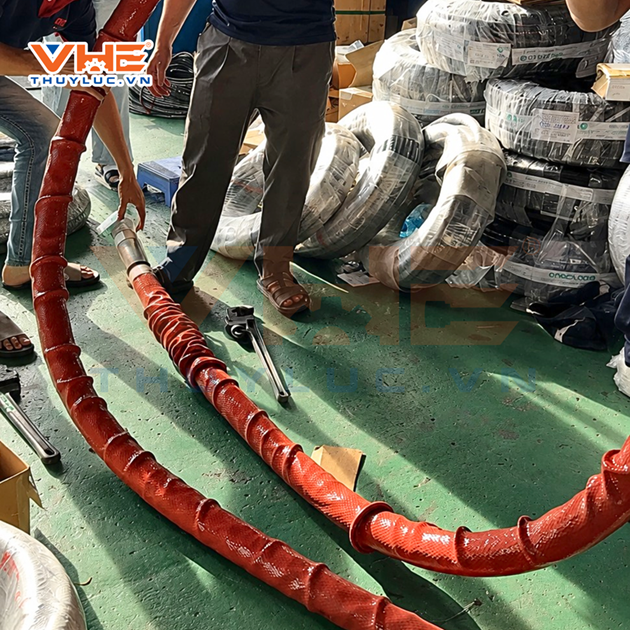

Professional Cutting & Sleeving Services:
In addition to supplying individual materials, VHE offers comprehensive, high-quality technical service solutions:
- Custom cutting and door-to-door delivery according to the exact lengths specified in your drawings.
- Precise hydraulic hose crimping and assembly.
- Professional insertion and securing of fire-resistant PJ sleeves and stainless steel protective braids. The sleeving ensures a tight seal without fibreglass fraying, backed by a comprehensive warranty policy so customers can install with complete peace of mind right upon receipt.
Due to continuous market fluctuations, we do not publicly list our prices. Customers and partners needing project material takeoffs, technical sizing consultation, or detailed quotes for thermal insulation sleeves, please contact VHE's sales department directly. Our engineering team is always ready to assist you!
