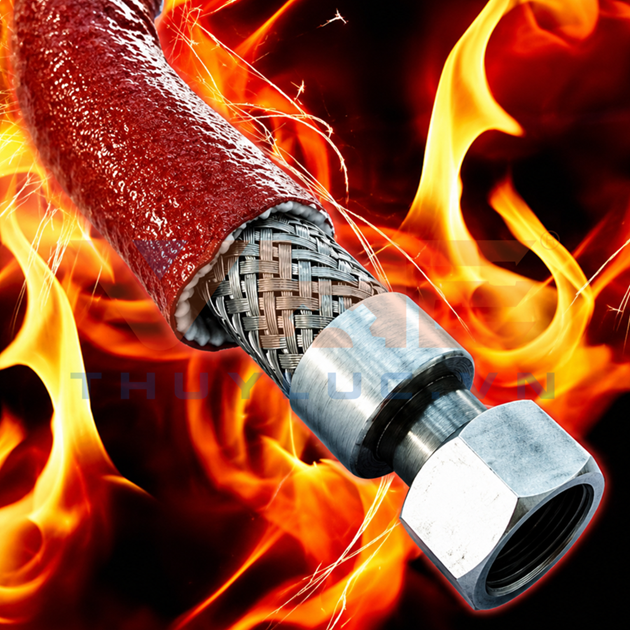

Metallurgy and oil & gas are among the industries with the most extreme working environments. The constant presence of extreme heat, molten metal slag, and fire/explosion hazards poses a direct threat to hydraulic systems, electrical cables, and overall plant safety. To definitively resolve these issues, fire-resistant PJ sleeves (PyroJackets) have become a mandatory protective solution.
So, how are these products practically applied in heavy industrial systems? Let's explore the details with VHE.

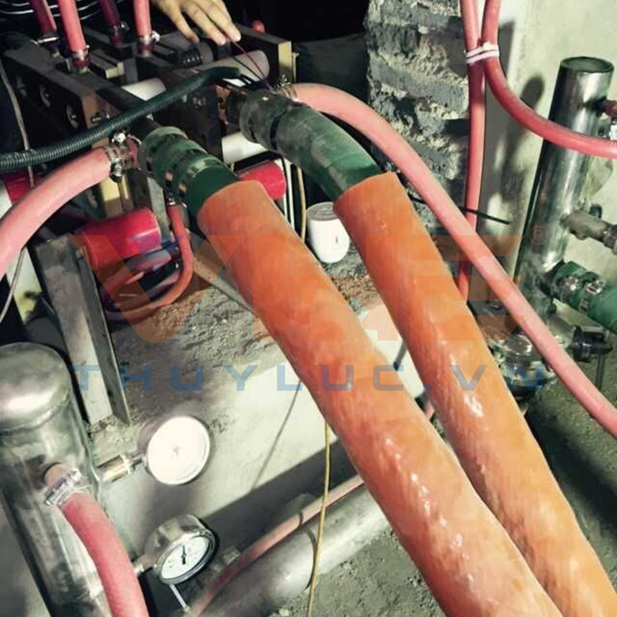

1. Applications of PJ Sleeves in Metallurgy & Steel Foundries
In metallurgical plants, steel foundries, and heavy machining workshops, hydraulic hoses and electrical cables frequently operate in proximity to high-temperature furnaces.
- Protection Against Molten Metal Splashes: This is a critical application. When struck by molten steel slag or welding sparks, the specialized silicone coating of the fire-resistant PJ sleeve immediately deflects and sheds them, completely preventing any adhesion or puncturing of the protective layer.
- Extreme Thermal Shock Resistance: The pouring of molten metal can generate massive waves of thermal radiation. Capable of withstanding thermal shocks up to 1649°C (3000°F) for 15 to 30 seconds, the red silicone-coated fibreglass sleeve acts as an impenetrable shield, preventing rubber hoses from bursting due to overheating.
- Maintaining Fluid Stability: The PJ thermal insulation sleeve prevents the hydraulic oil inside the hoses from boiling due to high ambient temperatures, ensuring that pressing and steel rolling machinery operate smoothly and precisely.

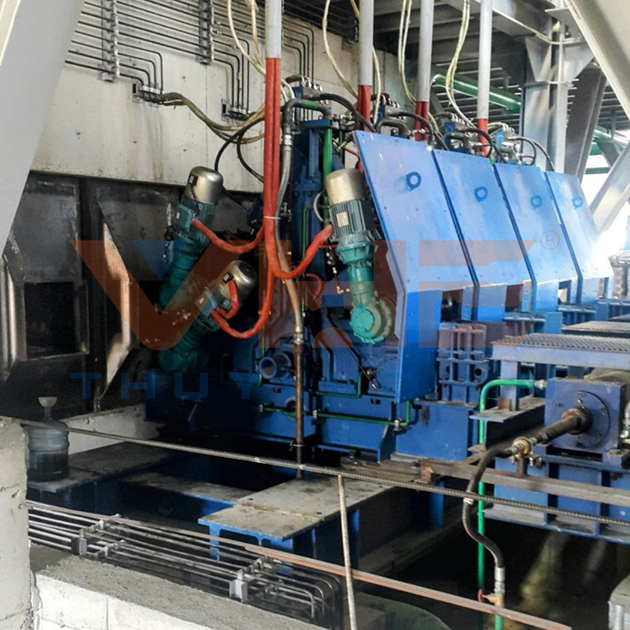

2. Applications of Fire-Resistant Sleeves in the Oil & Gas Industry
The oil and gas sector demands the most stringent fire and explosion safety standards (Zone 0, Zone 1, Zone 2). Therefore, protecting transmission systems is of paramount importance.
- Preventing Fire Hazards: Oil and compressed gases are highly flammable substances. A hose leak combined with electrostatic sparks can lead to a catastrophic disaster. Installing fire-resistant sleeves helps isolate the hoses from external heat sources, effectively eliminating the risk of ignition.
- Chemical and Abrasion Resistance: Offshore drilling environments are constantly exposed to seawater, salt vapour, as well as acidic and alkaline chemicals. The silicone rubber coating of the thermal insulation sleeve offers outstanding chemical resistance, protecting the hydraulic hose's outer rubber jacket from deterioration and decay.
- Protecting Control Cables: Beyond hydraulic hoses, fire-resistant PJ sleeves are also utilized to bundle and protect signal cables. This ensures the rig's control systems remain fully operational and uninterrupted, even in the event of localized thermal incidents.

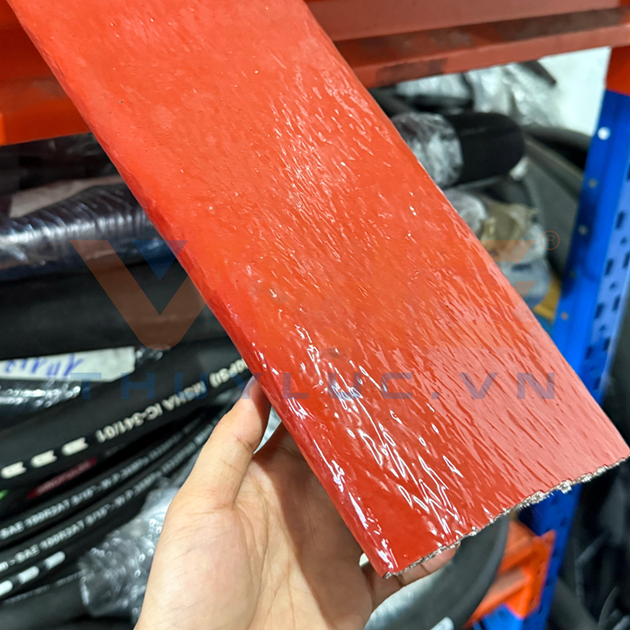

3. Why Are PJ Sleeves Considered the Optimal Choice for Engineers?
The reliability of PJ sleeves stems from their two-layer material structure, specifically engineered for heavy industrial environments:
- Inner layer: Knitted from heat-resistant fibreglass, providing excellent electrical insulation (7kV - 25kV) and perfect thermal insulation.
- Outer layer: Premium silicone rubber or polyurethane, which creates a smooth finish that is water-resistant, oil-resistant, and anti-aging.
This combination enables the fire-resistant PJ thermal sleeve to operate continuously at 260°C (500°F) and withstand temperatures up to 1093°C (2000°F) for 15 to 20 minutes.

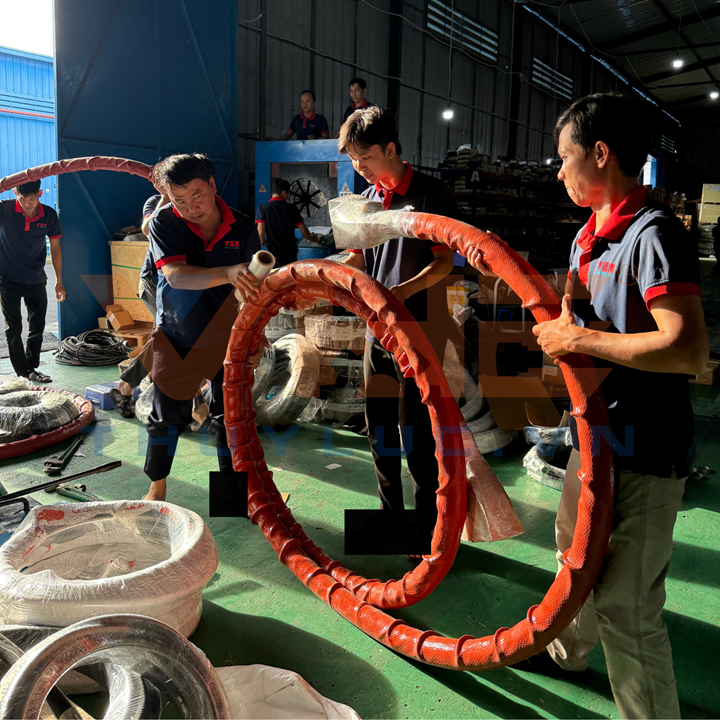

4. VHE – Your Professional Supplier & Custom Assembly Partner for Fire-Resistant PJ Sleeves
To ensure your systems are protected by top-quality products, Vina Hydraulic Equipment Joint Stock Company (VHE) proudly stands as a reputable distributor of fire-resistant PJ sleeves, maintaining massive warehouse inventories in both Ho Chi Minh City and Hanoi.
- Comprehensive Size Range Availability: Spanning from ID5 to ID150. Specifically, highly demanded industrial sizes such as ID13, ID22, ID32, and ID51 are always stocked in thousands of meters, ready for immediate dispatch for your urgent maintenance projects.
- Expert Custom Assembly Services: VHE goes beyond supplying raw materials. Our engineering team provides custom-length cutting, professional hose crimping, as well as the precise insertion of fire-resistant PJ sleeves and stainless steel protective braids. We guarantee a perfectly sealed finish with absolutely zero fibreglass fraying.
Proactively protect your systems today! Factory operators and mechanical workshops requiring technical consultation or bulk pricing, please contact VHE directly for swift material takeoff assistance and support.
