In Vietnam's mechanical machining and heavy equipment industry, selecting a precise hose crimping device is crucial for ensuring the safety of high-pressure hydraulic systems. For workshop owners and factory managers, the Samway P32 hydraulic hose crimping machine consistently ranks as a highly sought-after piece of equipment.
Through in-depth technical analysis, VHE highlights the 5 key reasons behind the power and immense popularity of this machine series:
1. Superior Crimping Power: Effortlessly Handles 2'' 4SP Hoses
The maximum crimping force of up to 2000kN (equivalent to 200 tons) stands as the clearest testament to the capability of the Samway P32. This immense pressing force guarantees that hose connections are absolutely secured, eliminating the risk of slippage or blow-offs under high-pressure. It allows for the effortless processing of high-pressure hoses with diameters of up to 2'' (such as the 4SP 4-wire spiral hydraulic hose).
- Technical Analysis: The 4SP hose is engineered with 4 layers of high-tensile steel wire for use in extremely high-pressure environments. For these steel layers to properly deform and grip the fitting without tearing the compressed inner rubber tube, the equipment must be made exceptionally flexible. It can seamlessly process everything from small hydraulic lines to large industrial hoses without the need for multiple machines, thereby significantly reducing initial investment costs.
2. Wide Opening Clearance and Dedicated P32 Die System
Many technicians often encounter difficulties when removing bent fittings (such as 45-degree and 90-degree elbows) from the machine after processing. The Samway P32 completely resolves this issue.

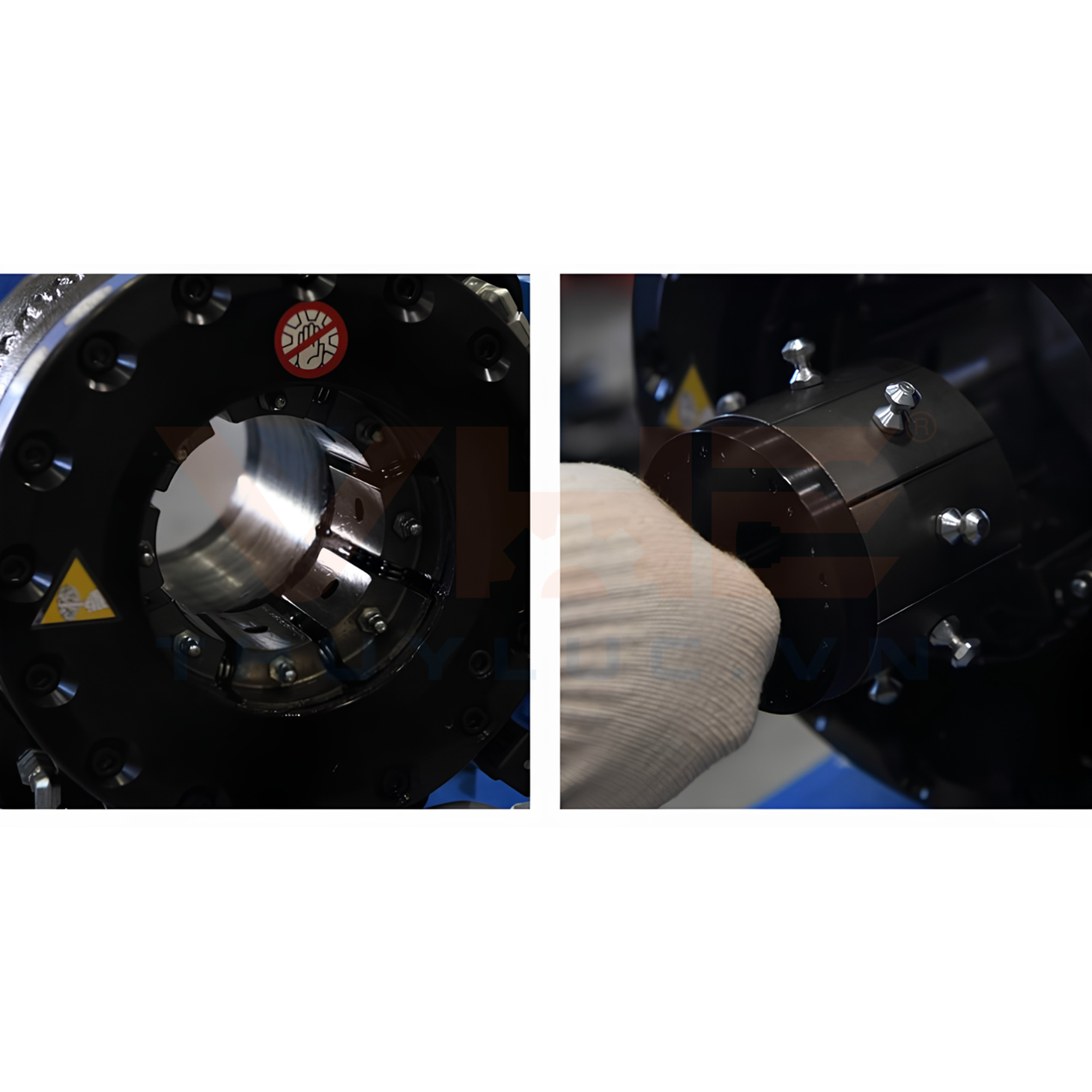

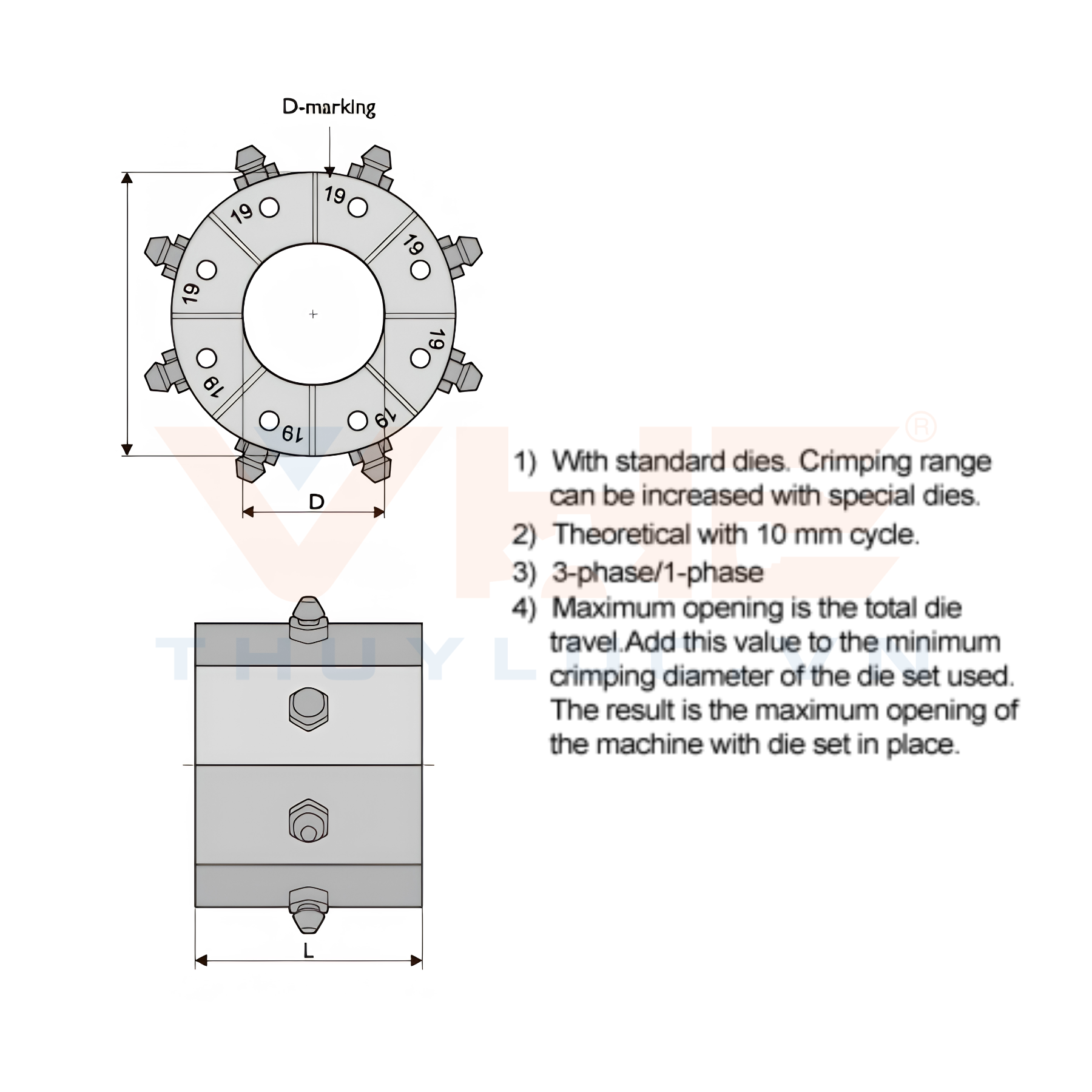

- Technical Analysis: With a maximum opening of +32 mm and a master die length of approximately 80 mm, this hydraulic hose crimper provides an exceptionally spacious crimping area. Operators can effortlessly insert and remove complex fittings without any obstruction. The included P32 dies (Die Type: P32) are crafted from wear-resistant alloy steel, ensuring the crimped surface is consistently perfectly round and meets high aesthetic standards.
3. Industrial Performance: Optimized for Mass Production
If your workshop needs to process large volumes to meet tight delivery schedules, the Samway P32's 4 kW motor is a dependable foundation.
- Technical Analysis: The 4 kW capacity not only delivers robust crimping power but also provides a stable energy supply to process large, thick hoses rapidly. The machine is capable of continuous operation with an impressive speed of up to ~1200 crimps per hour. This efficiency enables workshops to significantly optimize production time, save on power consumption, and reduce labour costs.
4. Hands-Free Design with Foot Pedal Control System
In mechanical machining, precision is measured down to the millimetre.
- Technical Analysis: When handling heavy 2-inch hose coils, operators are required to use both hands to hold, center, and push the hose deeply into the die set containing the fitting. Thanks to the integrated foot pedal, operators are completely hands-free to accurately align the materials. This design ensures safe control over the crimping process and delivers absolute precision, making it an incredibly user-friendly feature. Furthermore, it significantly reduces operator fatigue and enhances operational safety, which is particularly beneficial when executing multiple, continuous crimps.
5. A Comprehensive and Secure Investment Solution from VHE
To maximize the equipment's performance, a reliable supplier and accompanying support services are decisive factors. At Vietnam Hydraulic Equipment Joint Stock Company (VHE), we import the Samway P32 series (including P32, P32E, P32Q, P32D, P32DC, P32S, P32T, and P32XD) from reputable partners and provide a comprehensive service ecosystem:
- Synchronized Material Supply: The machines are typically distributed with all-inclusive combo packages featuring hydraulic hoses, fittings, ferrules, and related accessories. With just a single investment, customers immediately acquire a fully equipped crimping station.
- On-site Assembly & Installation: VHE provides on-site support for assembly, wiring, and installation directly at your workshop. We ensure that both the electrical system and the hydraulic oil pump operate seamlessly.
- Technology Transfer & Training: Our technical team provides hands-on operational training for beginners. This covers everything from changing dies and configuring electronic parameters to expert tips on achieving international standard finished products. This service is ideally suited for those starting a new hose crimping business.
Boasting impressive technical specifications, high versatility, and comprehensive support services from VHE, the Samway P32 is undoubtedly a sustainable and profitable investment for any hydraulic hose crimping workshop!
For technical consultation or equipment quotations, partners are encouraged to contact VHE directly for prompt assistance!
