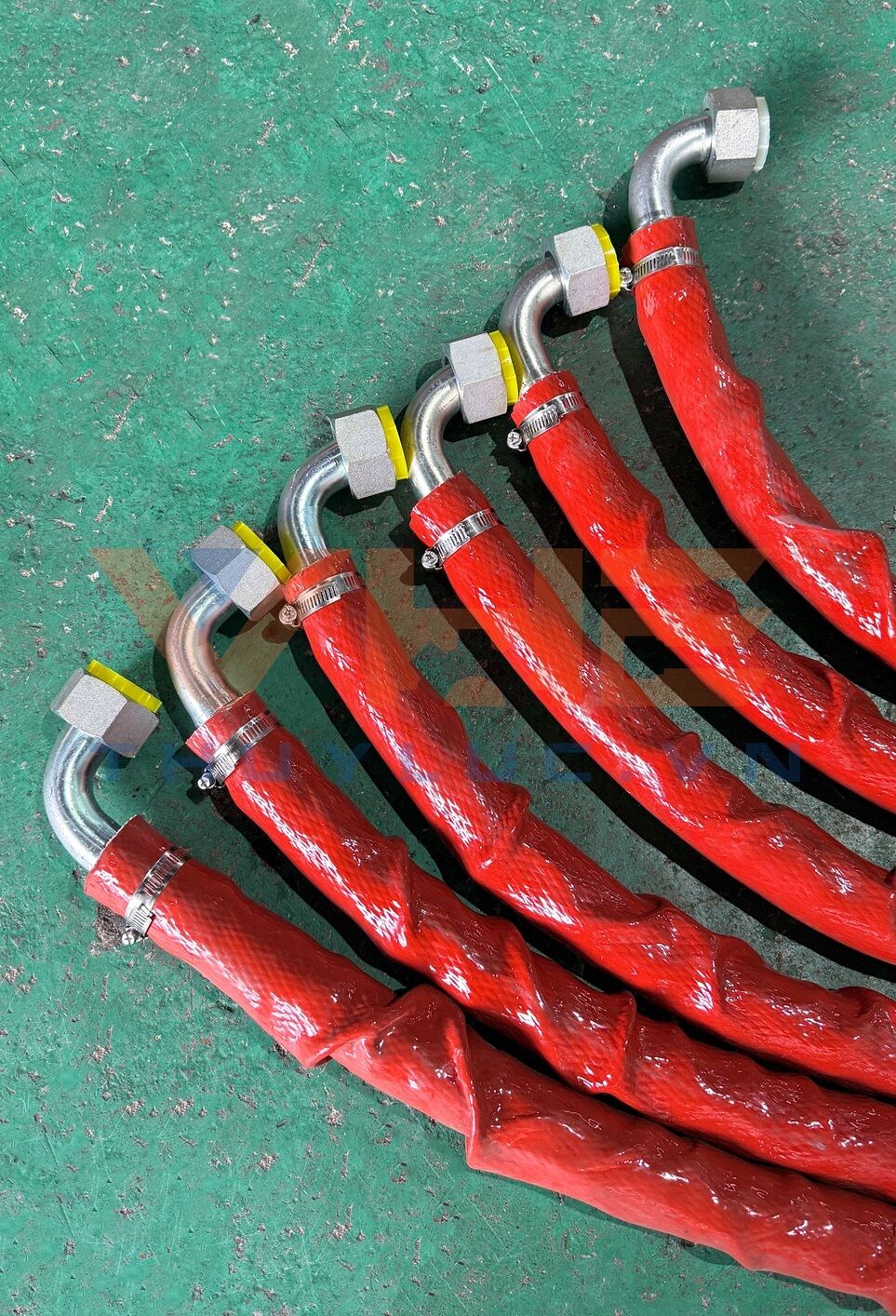

Continuing to Process Orders for DIN Fitting Crimping on 1/4" & 1/2" Hydraulic Hoses with PJ Sleeves

VHE continues to earn our clients' trust by completing a custom assembly order of 100 Sinopulse hydraulic hoses (1/4" and 1/2" sizes). These hoses feature DIN-standard crimped fittings on both ends and are equipped with PJ fire sleeves for thermal insulation, specifically designed for a steel mill environment.

Order Details: Standard DIN Crimped Hydraulic Hoses

This particular order required a combination of high-pressure resistance (up to 400 Bar) and maximum mechanical durability. VHE's technical team precisely executed the assembly according to European DIN standards for the following hose lines:

- 1/4" Hydraulic Hose Assemblies:

Utilized 1/4" R2AT (2SN) hydraulic hoses with a durable steel wire-braided construction.
Assembled with 1/4" - 10S DIN fittings and 1-wire/2-wire non-skive ferrules, ensuring an absolute, leak-proof seal.

- 1/2" (DN12) Hydraulic Hose Assemblies:

Utilized 1/2" 4SP hydraulic hoses, specifically designed for high-pressure systems.
Assembled with 1/2" - 16S DIN fittings and 4-wire ferrules, creating a robust connection highly resistant to vibration and fluid leakage.

Additionally, to enhance resistance against abrasion and physical impacts, all hose assemblies were fitted with an exterior layer of flexible braided stainless steel sleeving.

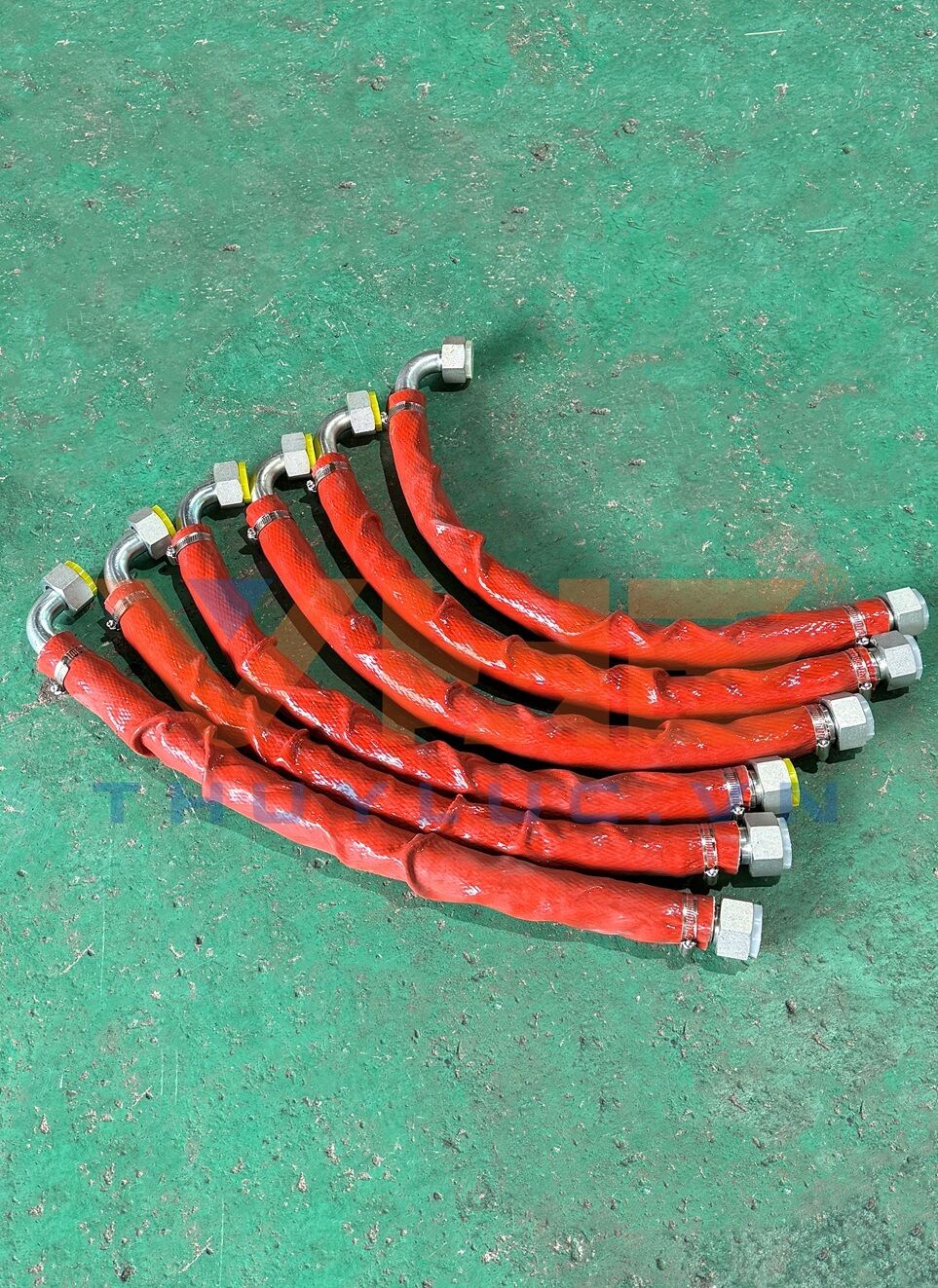

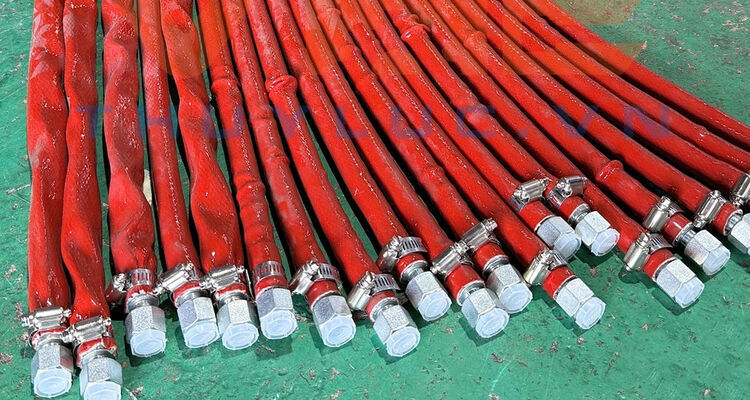

Continuing to Process Orders for DIN Fitting Crimping on 1/4" & 1/2" Hydraulic Hoses with PJ Sleeves

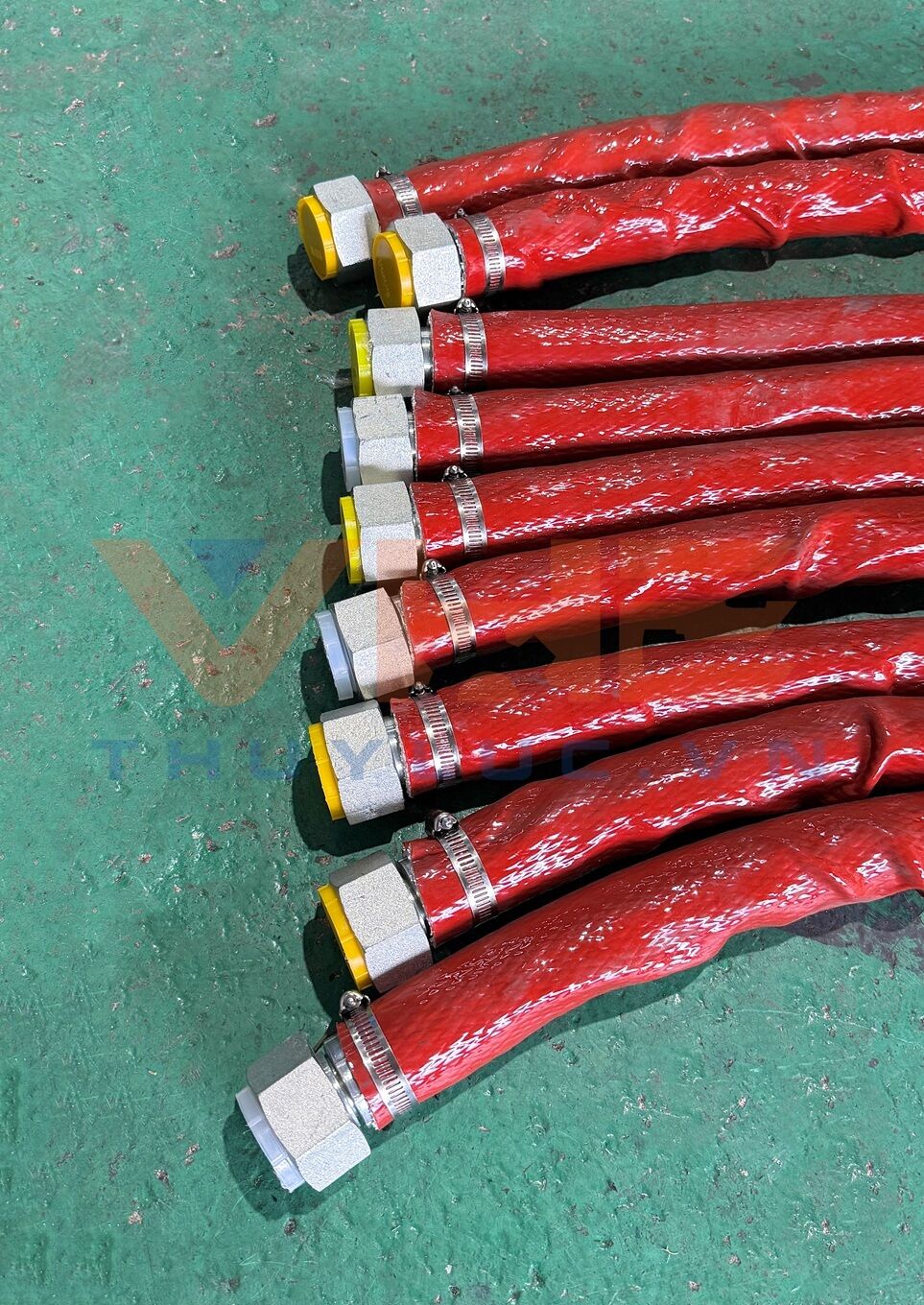

Professional PJ Fire Sleeving Service at VHE

The core value and distinguishing factor of this shipment lie in the requirement to integrate PJ fire sleeves into the hydraulic hose assemblies. At VHE, we pride ourselves on providing top-tier, professional fire sleeving services:

- Premium Materials: The PJ fire sleeves are constructed from thick extruded silicone-coated fibreglass. This sleeving can withstand extreme continuous radiant heat and direct contact with molten metal splash.

- Comprehensive Protection: In the event of a fire hazard or a sudden spike in ambient temperature, the PJ sleeve provides effective thermal insulation. It prevents the inner rubber from bursting or melting, thereby safeguarding the hydraulic fluid inside and mitigating the risk of secondary explosions.

- Precision Assembly Techniques: The fire sleeving is tightly integrated by the VHE team, featuring aesthetically pleasing and secure end fastenings. This process ensures that the hose's flexibility (bend radius) is not compromised during machinery installation.

The simultaneous integration of flexible braided stainless steel sleeving and PJ fire sleeves represents the optimal solution for steel rolling mills, foundries, and high-temperature boiler environments.

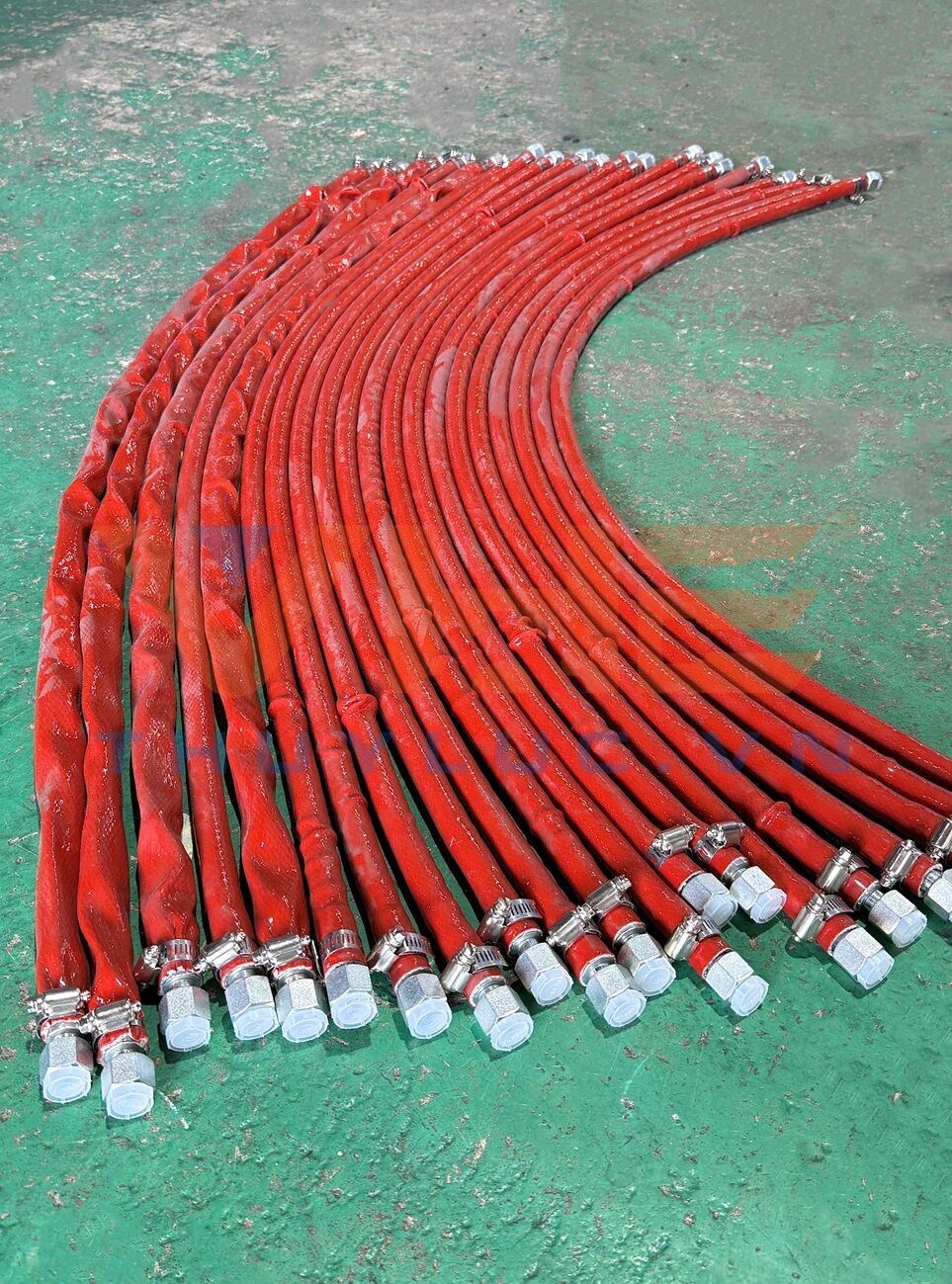

DIN Fitting Crimping on 1/4" & 1/2" Hydraulic Hoses with PJ Sleeves

A Leading, Trusted Hydraulic Hose Assembly Provider

With extensive warehousing capabilities and a diverse inventory of materials—ranging from DIN and ISO fittings to various types of hydraulic and heat-resistant hoses—VHE is always prepared to meet all assembly requests, from standard to highly specialized. We are committed to delivering perfectly finished assemblies that undergo strict quality control procedures before shipment.

Enterprise customers requiring technical consultation on high-pressure hydraulic hose solutions, stainless steel braiding, or PJ fire sleeving are encouraged to contact VHE's engineering team for optimal system solutions.
