Last weekend, the VHE team delivered and installed a duo of Samway hydraulic hose crimping and skiving machines near the Binh Thai intersection, Ho Chi Minh City. This is one of the many orders VHE has successfully fulfilled, providing a comprehensive handover process from on-site assembly to thorough technical training.
Professional installation and technology transfer process for Samway machines
To ensure the processing system operates reliably and operators quickly master the equipment, the entire handover process at the customer’s workshop is executed by the VHE team, following a standard procedure
1. Equipment delivery and electrical wiring
The Samway hose crimping and skiving machine combo is safely transported to the site. Our technicians immediately position the equipment, inspect the workshop’s power grid, and connect the power supply for both machines to ensure safety standards and optimal operating capacity.
2. Detailed operational training:
Right after powering up, VHE technicians provide a comprehensive overview of the machine structure, control buttons, and display screens. Customers are meticulously guided on how to set the crimping stroke for the crimper, as well as how to adjust the skiving blades to match different rubber cover layers.
3. Providing hydraulic hose crimping specifications
To help customers easily work with various hose sizes and fitting types without guesswork, VHE provides and instructs operators on how to use it. This is a crucial document that ensures the finished products achieve perfect tightness and maximum pressure resistance.

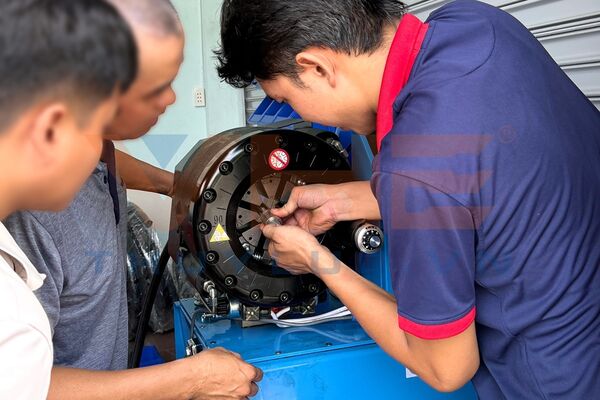

4. Test run – Hands-on skiving and crimping of sample hoses
For the machine acceptance test, VHE technicians directly perform the rubber skiving and crimp the first sample hose to check the motor’s smoothness and the die’s roundness. The most important step is having the customers operate the machines themselves – manually skiving and crimping subsequent hoses under our technicians’ supervision until they are fully proficient and confident in their operation.
Technical Specifications: Samway P32 Hydraulic Hose Crimping Machine
- This crimping machine model is capable of crimping up to 2" 4-wire spiral hydraulic hoses.
- Crimping Range: 4 – 87 mm
- Max. Hydraulic Hose Size: 2″ 4SP
- Die Type: P32
- Master Die Length: ~80 mm
- Maximum Opening: +32 mm
- Motor Power: 4 kW
- Max. Crimping Force: 2200 kN (~220 Tons)
- Crimps per Hour: ~1200
- Foot Pedal: Included (with foot pedal control)
Warranty Policy and Long-Term Commitment from VHE
We understand that machinery is a critical asset and a vital production tool for your business. When investing in the Samway processing machine combo at VHE, you are fully covered by a genuine manufacturer's warranty. Furthermore, our dedicated maintenance and repair policies ensure that your equipment operates reliably, minimizing any potential downtime.
Throughout your operation, should you encounter any difficulties regarding technical specifications or routine maintenance, VHE is always ready to provide prompt remote support.
Contact for Technical Support and Quotations
If you require consultations on configurations or wish to upgrade your hydraulic hose crimping and skiving machines, please contact Vietnam Hydraulic Equipment Joint Stock Company for the fastest service:
