Machining 1 end rotating flange for Parker 301SN 2.1/2'' 2-layer steel oil hydraulic hose

Machining 1 end rotating flange for Parker 301SN 2.1/2'' 2-layer steel oil hydraulic hose

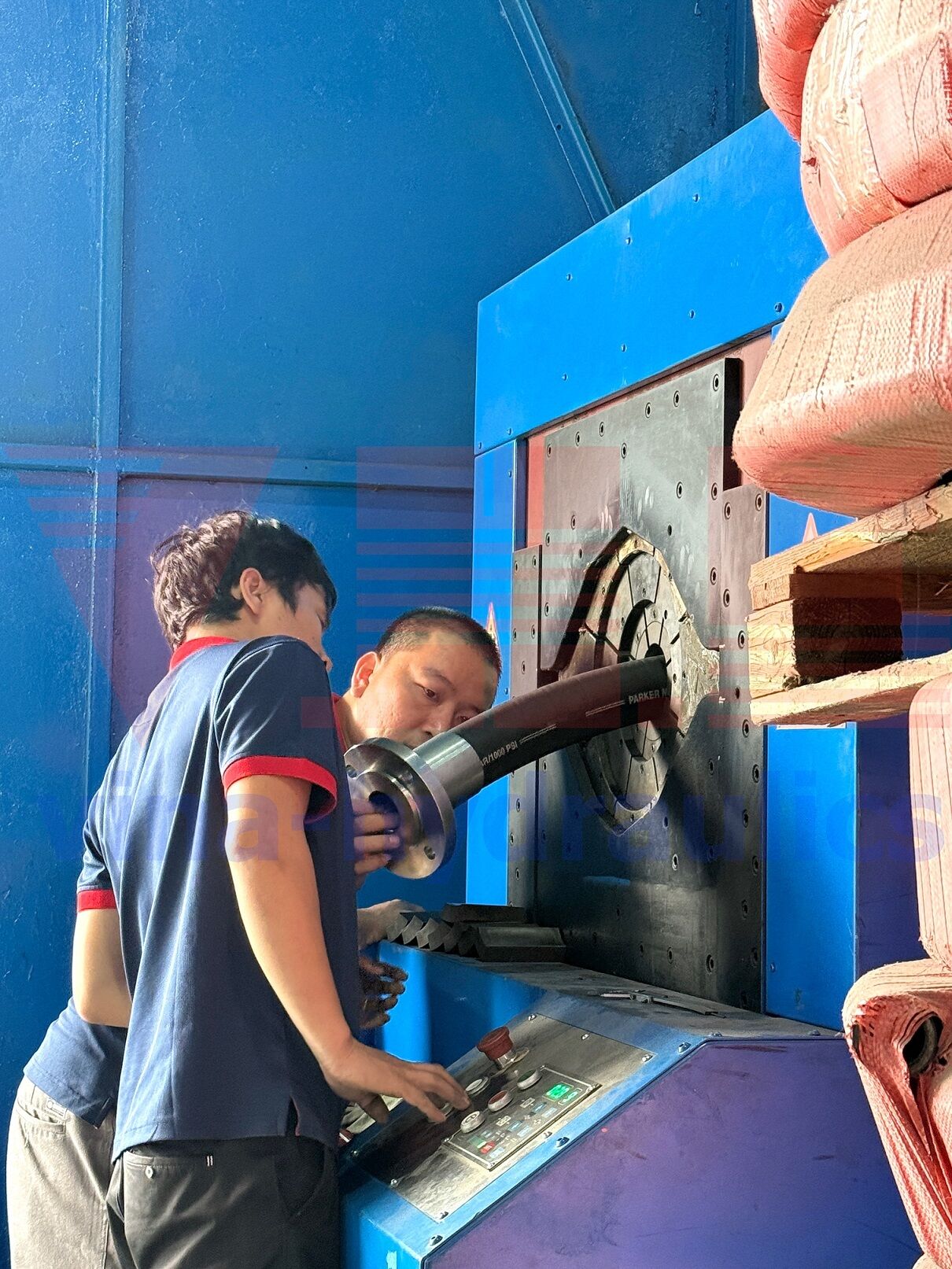

Vina - Hydraulic Equipment Joint Stock Company processes 2-layer Parker steel hydraulic oil hose 2.1/2'' 301SNPM-40PM, 1-end flange, 2.1/2'' stainless steel swivel flange.

In addition to the hydraulic hose size 2.1/2'' 301SN Parker, VHE also distributes other sizes such as:

  • Hydraulic hose R2AT 1/4", 301SNMSHA-4
  • Hydraulic hose R2AT 3/8", 301SNMSHA-6
  • Hydraulic hose R2AT 1/2", 301SNMSHA-8
  • Hydraulic hose R2AT 5/8", 301SNMSHA-10
  • Oil pipe R2AT 3/4", 301SNMSHA-12
  • Hydraulic oil pipe R2AT 1", 301SNMSHA-16
  • Hydraulic hose R2AT 1.1/4", 301SNMSHA-20
  • Rubber hose R2AT 1.1/2", 301SNMSHA-24
  • Water hydraulic hose R2AT 2", 301SNMSHA-32

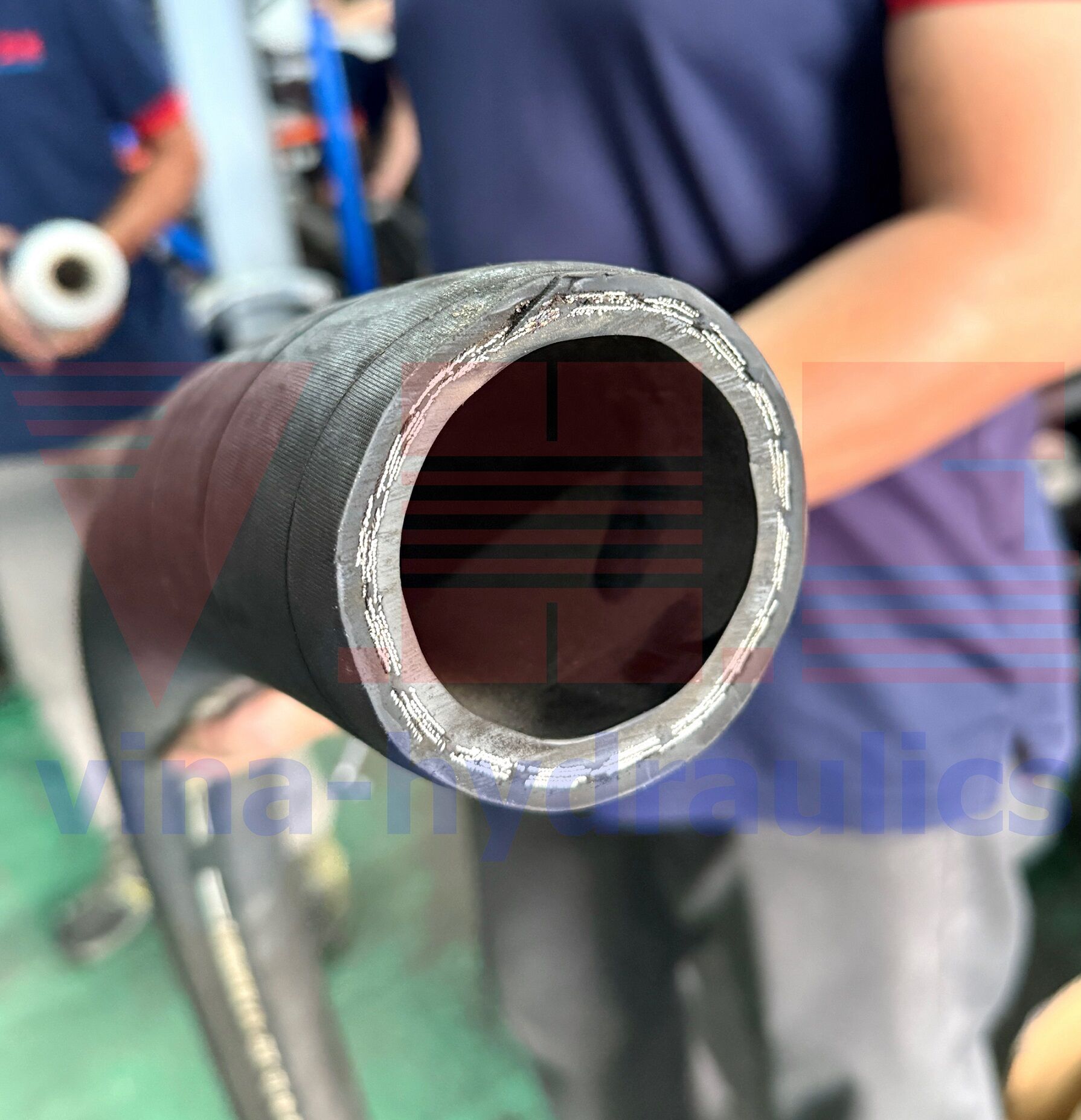

Parker 301SN 2.1/2'' 2-layer steel oil hydraulic hose

Machining 1 end rotating flange for Parker 301SN 2.1/2'' 2-layer steel oil hydraulic hose

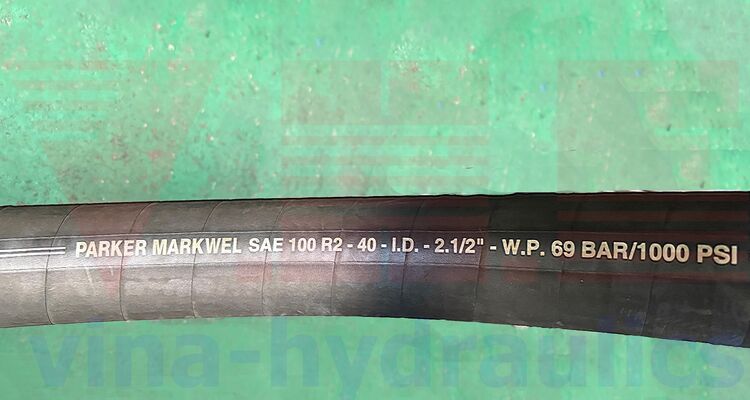

Parker 301SN 2.1/2'' 2-layer steel oil hydraulic hose

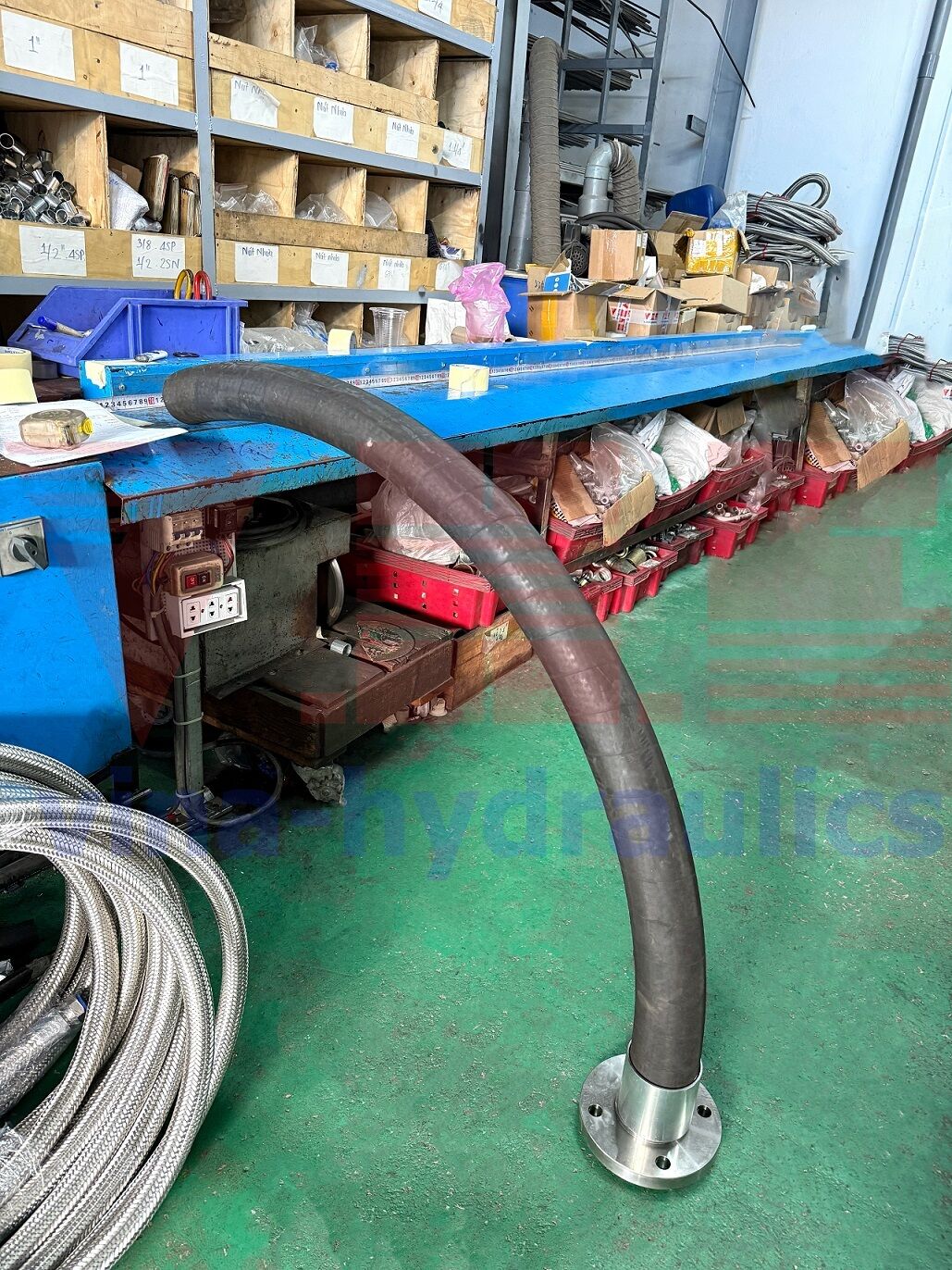

Machining 1 end rotating flange for Parker 301SN 2.1/2'' 2-layer steel oil hydraulic hose

Overview of Parker 301SN oil hose:

- Origin: PARKER - ITALY

- Model: Medium Pressure Parkrimp No-Skive Hoses 301SN

- International standards: DIN EN 853 2SN - ISO 1436

Structure:

- Material: MSHA approved synthetic rubber

- Outer jacket: Fire-resistant synthetic rubber, galvanized steel

- Nitrile (NBR) tube

- Reinforcement: 2 braided high-strength steel wire

- Operating temperature: -40 °C to 100 °C

- Operating pressure up to 40 MPa (5800 psi/ 400 bar)

- Bending radius up to 25 inches

- Size: DN6 – 51 (1/4 to 2 inches)

- Suitable for Parkrimp Fitting 48-series

If customers need to buy a Parker 301SN 2-layer steel hydraulic hose, please contact VHE immediately for specific advice from the company's technicians!

- Consulting support: 0903 967 588 - 0903 067 588

- Support email: [email protected]

- Address: 127 Huy Can, Gia Hoa Residential Area, Phuoc Long B Ward, Thu Duc City, Vietnam
