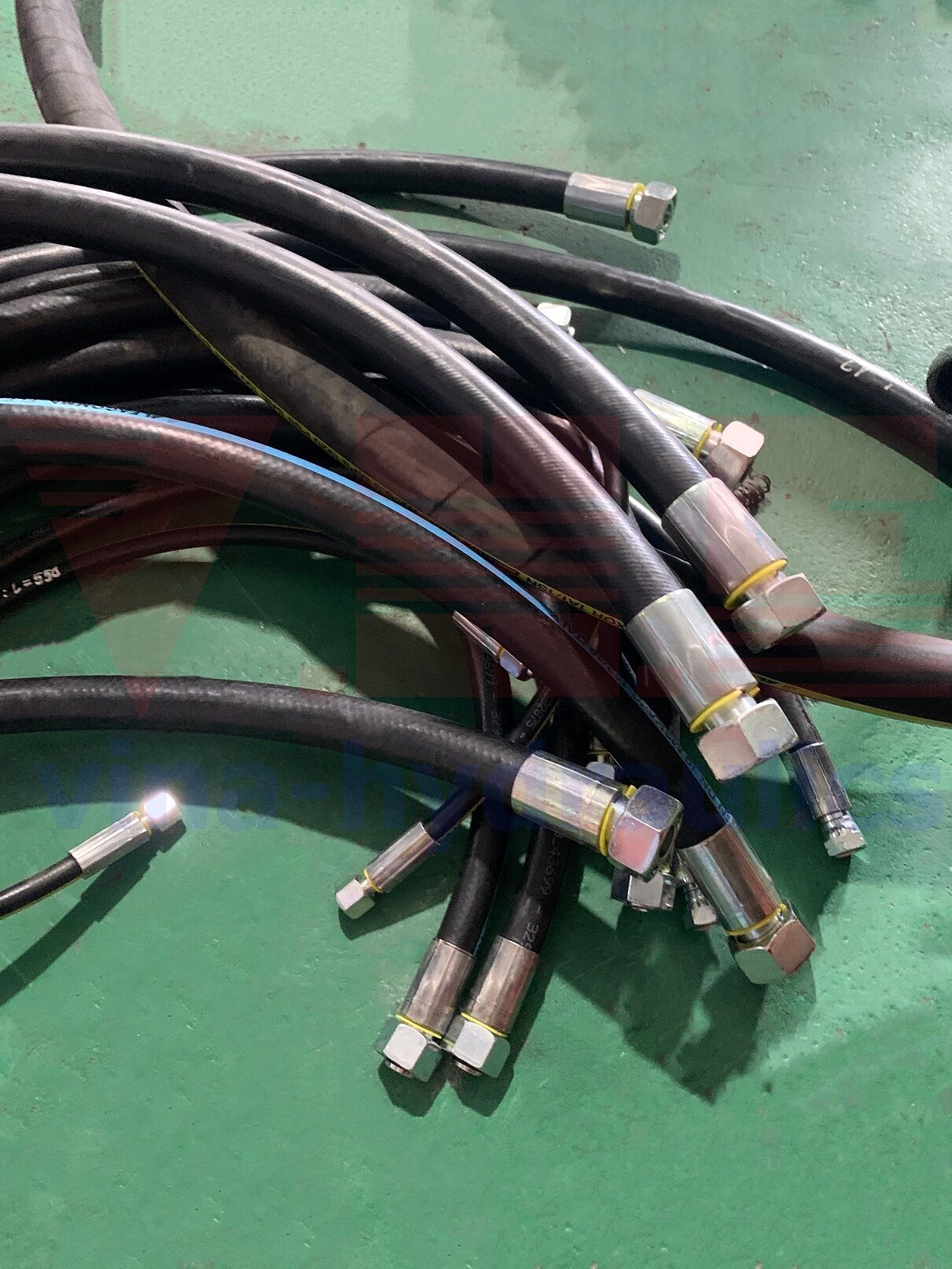

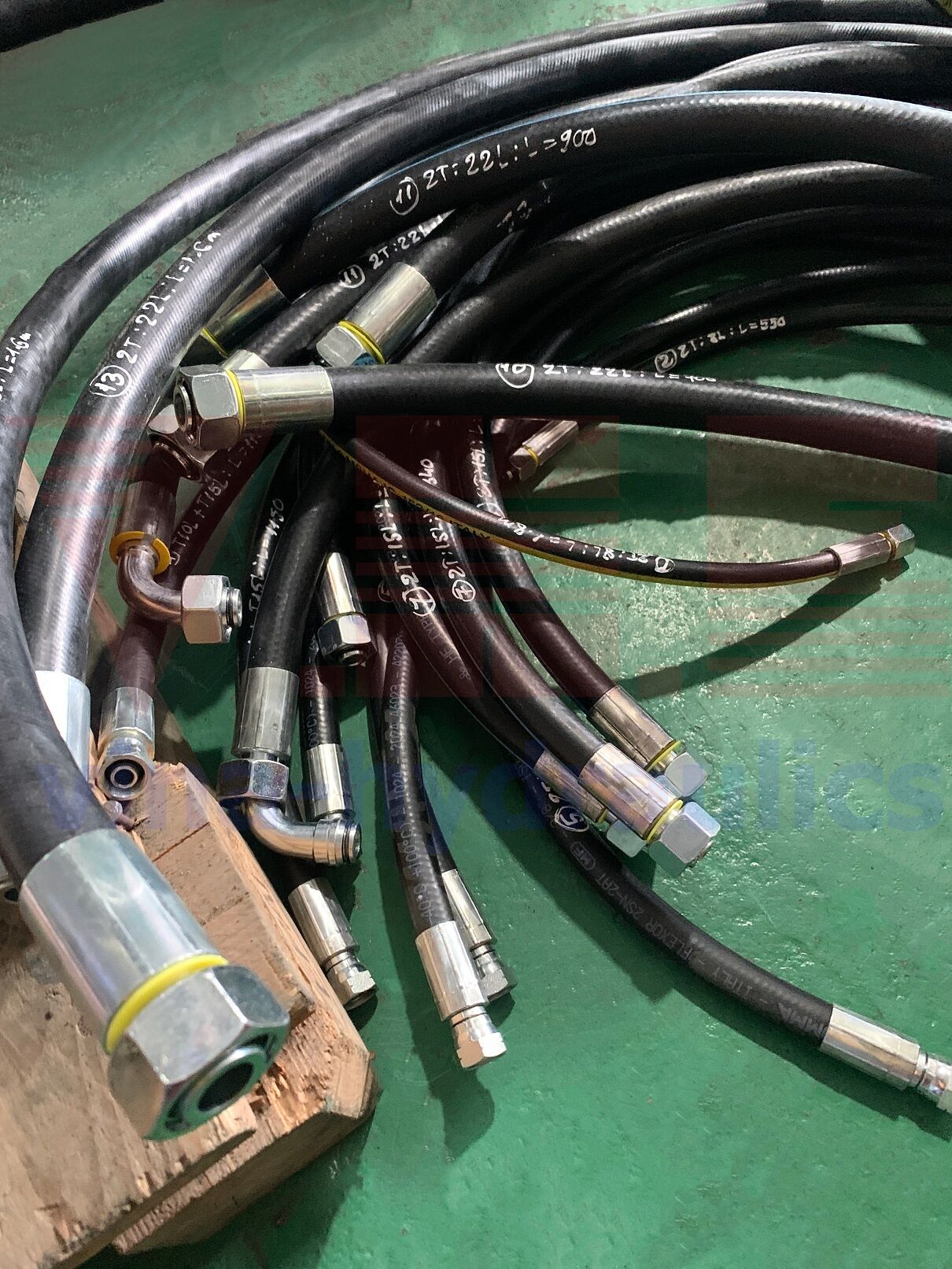

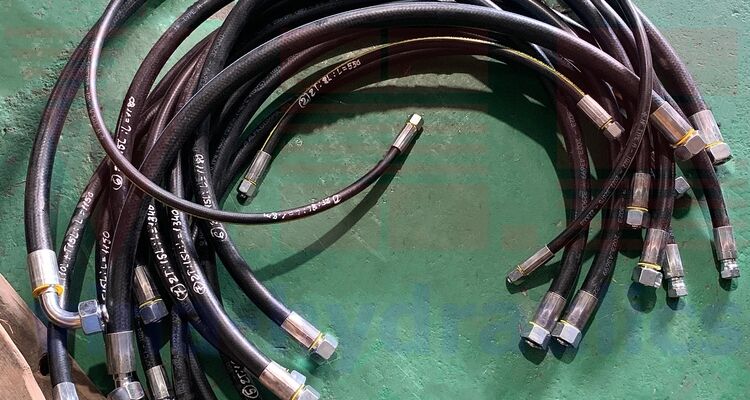

40 strands of Alfagomma Flexor hydraulic hose, 1-layer steel size 1/4'', 1'' and 2-layer steel size 1/2'', 5/8'', are processed by technicians at VHE with DIN crimping fittings, genuine made in Italy. VHE staff measured and cut the pipe to the required length.
Details about the order and the different sizes of hydraulics processed by VHE are as follows:

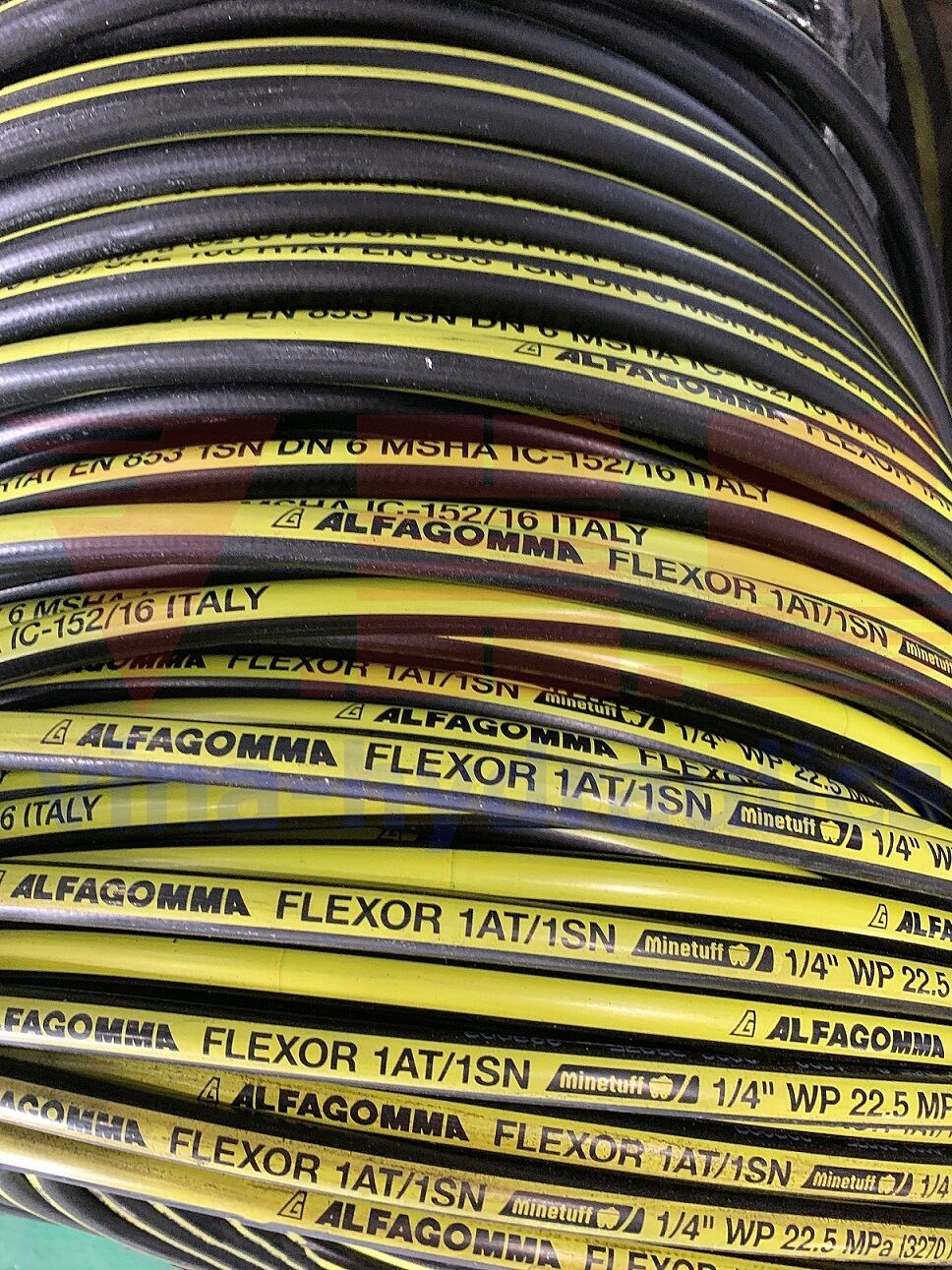

- Hydraulic hose Alfagomma Flexor 1SN-R1AT (1/4'', L= 1800mm) includes DIN crimping fittings, 2 straight ends FE0414L8 and 2 ferrules B12T04N
- Hydraulic hose 1- layer Alfagomma Flexor 1 lớp 1SN-R1AT (1'', L= 1350mm) includes DIN crimping fittings, 2 straight ends FE1636L28 và 2 ferrules B12T16N
- Hydraulic hose Alfagomma Flexor 1SN-R1AT (1.1/4'', L= 3020mm) includes DIN crimping fittings, 2 straight ends FE2045L35 và 2 ferrules B12T20N
- Hydraulic hose Alfagomma Flexor 2SN-R2AT (3/8'', L= 950mm) includes DIN crimping fittings, 1 straight ends FE0616L10, 1 straight ends FE0622L15 và 2 ferrules B12T06N
- Hydraulic hose Alfagomma Flexor 2SN-R2AT (1/2'', L= 1180mm) includes DIN crimping fittings, 1 straight ends FE0822L15 và 2 ferrules B12T08N
- Hydraulic hose Alfagomma Flexor 2SN-R2AT (5/8'', L= 1370mm) includes DIN crimping fittings, 1 straight end FE1026L18, 1 90- degree angle F90E1026L18 và 2 ferrules B12T10N
- Hydraulic hose 2- layer Alfagomma Flexor 2SN-R2AT (3/4'', L= 700mm) includes DIN crimping fittings, 2 straight ends FE1230L22 and 2 ferrules B12T12N
What is a DIN- threaded connector?
DIN stands for Deutsche Industrie Normen, this is a thread system researched and established according to the standards of the German Institute of Technology. This is a very popular thread type used in installation systems in the European region.
Technical information about the DIN system
- Thread system: Metric
- Taper angle: 24⁰ (with DKM taper angle 30⁰)
- Thread type: parallel thread
- Sealing type: mainly DIN connectors sealed with oring.
- Popular materials: Alloy, steel, stainless steel, copper, etc.
- Identification standards: DIN 3853, ISO 261

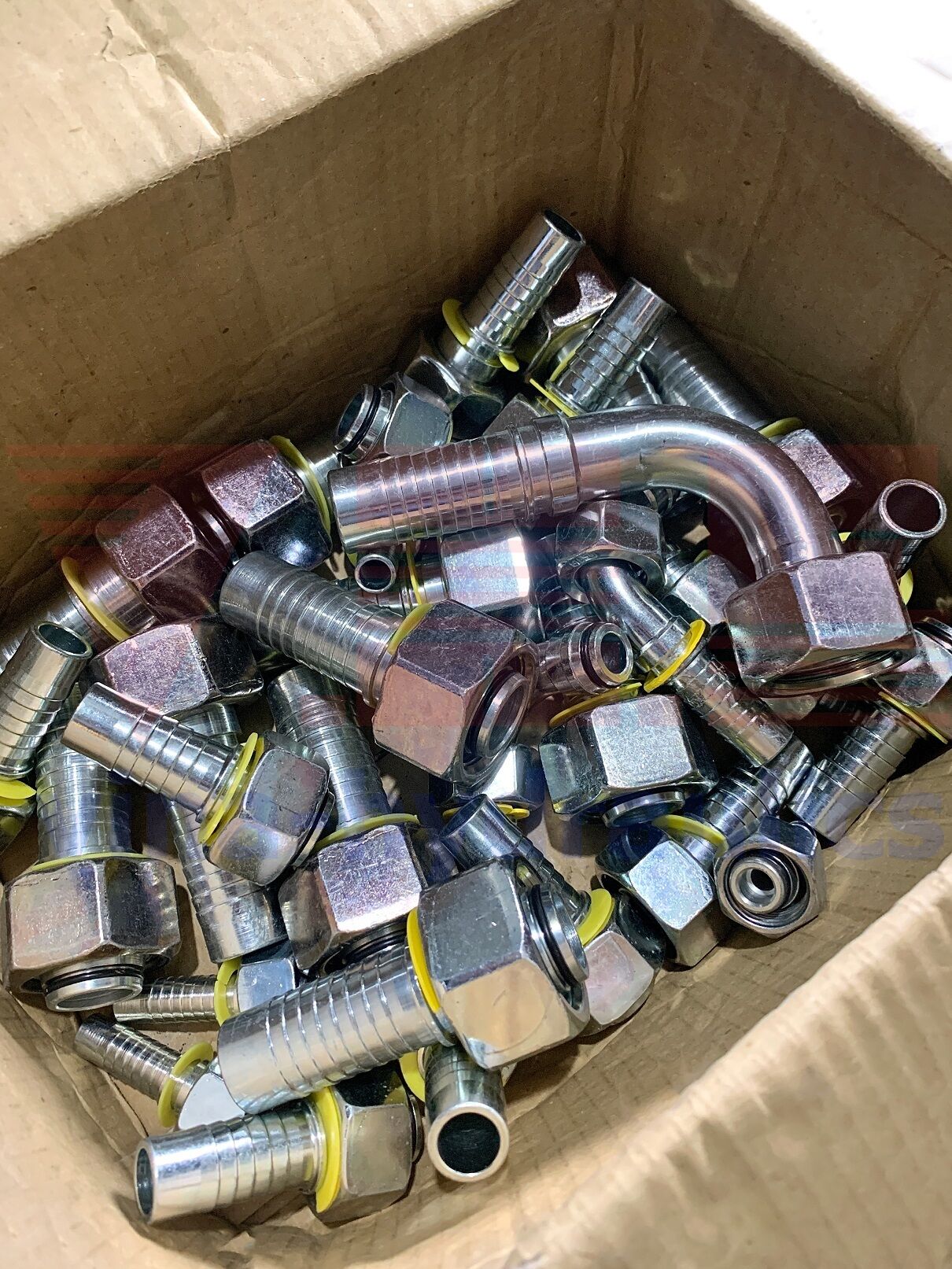

VHE is currently an agent of importing Alfagomma hydraulic hose directly from Phu Cuong Holding Joint Stock Company - Alfagomma's largest authorized dealer in Vietnam. In addition, the company is also a distributor of ferrules, crimping fittings, BSP threaded connectors, JIC threaded connectors, ORFS threaded connectors, and connectors according to DIN2353 standards.
Customers have a demand to buy Alfagomma Flexor 1- layer, 2- layer hydraulic hose, ferrules, and crimping fittings. Please contact VHE to receive consultation from VHE's technicians
