Ống Micro Hose là gì? Công dụng của dây kiểm tra áp suất

Ống Micro Hose hay còn được biết là dây kiểm tra áp suất là một thiết bị rất cần thiết để theo dõi quá trình hoạt động của hệ thống. Chúng thường được ứng dụng trong các hệ thống mạch thủy lực nhỏ, kiểm tra áp lực dầu trên hệ thống, thường gắn với đồng hồ để test biết áp lực, lấy mẫu chất lỏng,...

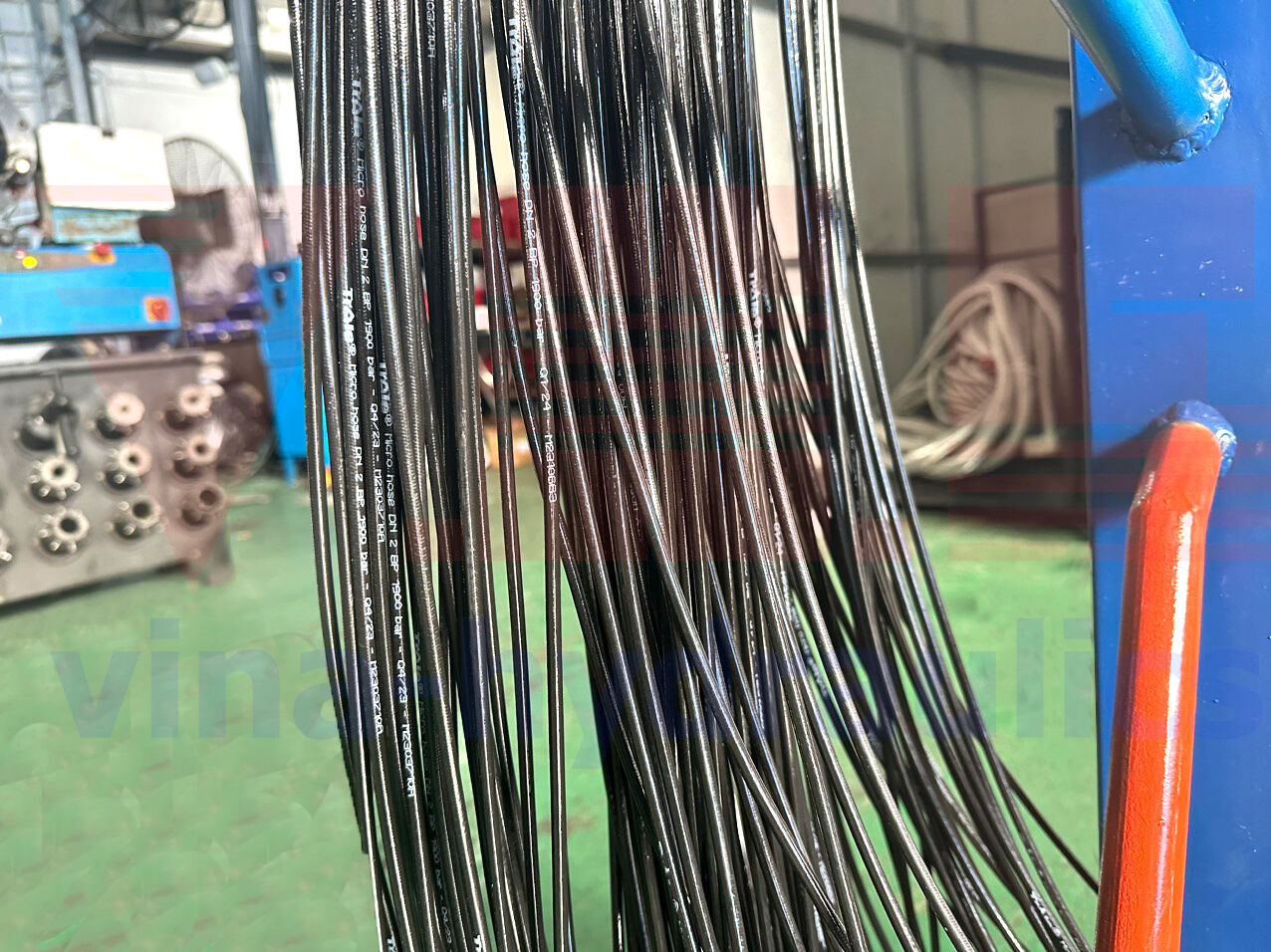

Ống Micro Hose

Về thông tin kỹ thuật Ống test point Micro Hose

- Lớp ngoài cùng làm từ chất liệu polyurethane đen, chống bám dính.

- Lớp thứ 2 được bện sợi Aramid để gia cường thêm sự bền bỉ, chống chịu tốt hơn.

- Lớp trong cùng được cấu tạo từ chất liệu Polyester Elastomer (nhựa nhiệt dẻo đàn hồi, cao su nhiệt dẻo)

+ Áp suất hoạt động: 630 bar (9100 Psi)

+ Áp suất cháy nổ: 1900 bar (27300 Psi)

+ Bán kính uốn cong: 20 mm

+ Trọng lượng: 0.02kg/ m

Công dụng của dây kiểm tra áp suất

+ Ghép nối và tách rời mà không cần tắt hệ thống

+ Khả năng đo áp suất và đỉnh áp suất bằng cảm biến áp suất

+ Khả năng thông hơi hệ thống và lấy mẫu

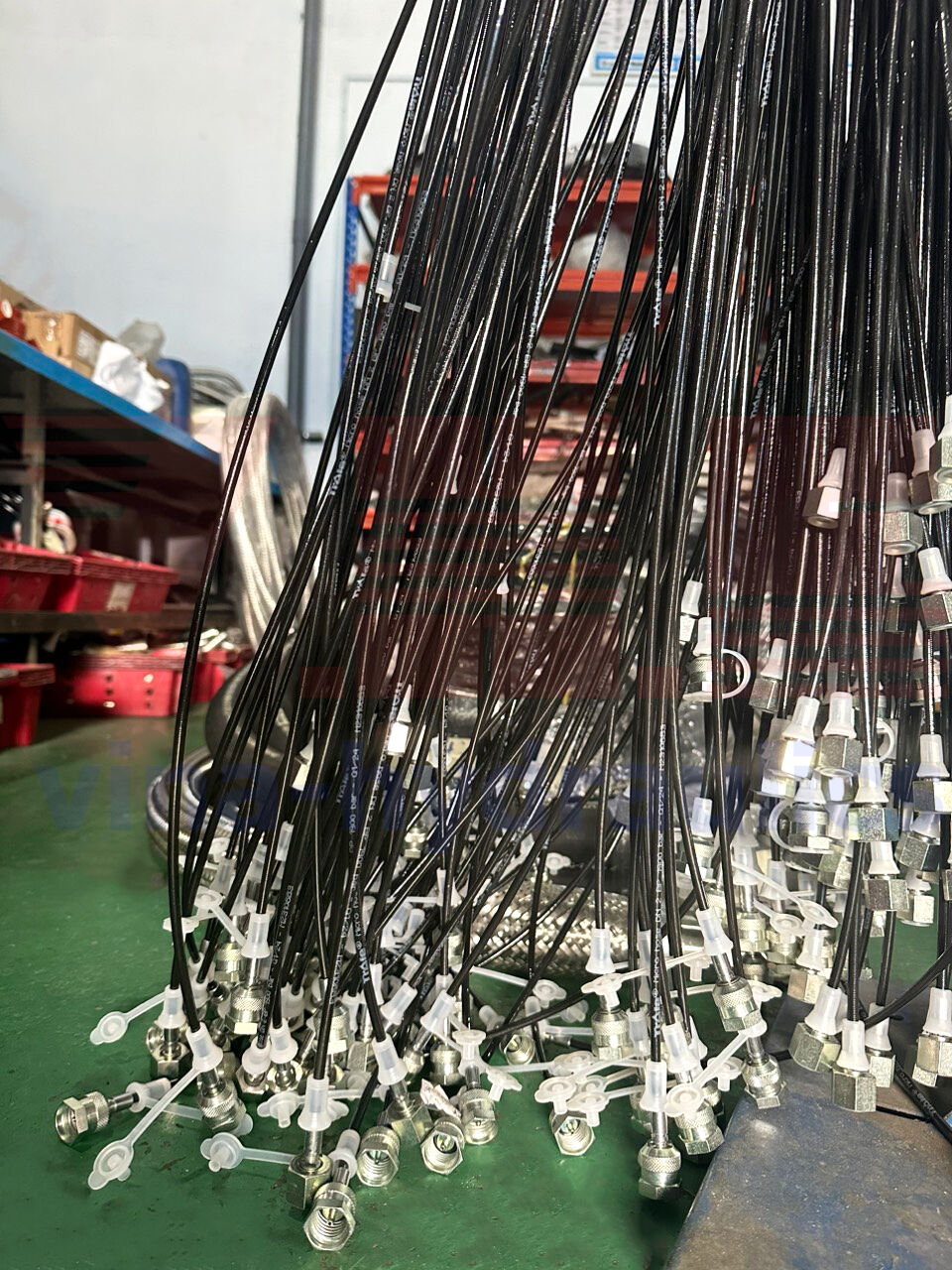

Ống test point Micro Hose giá rẻ

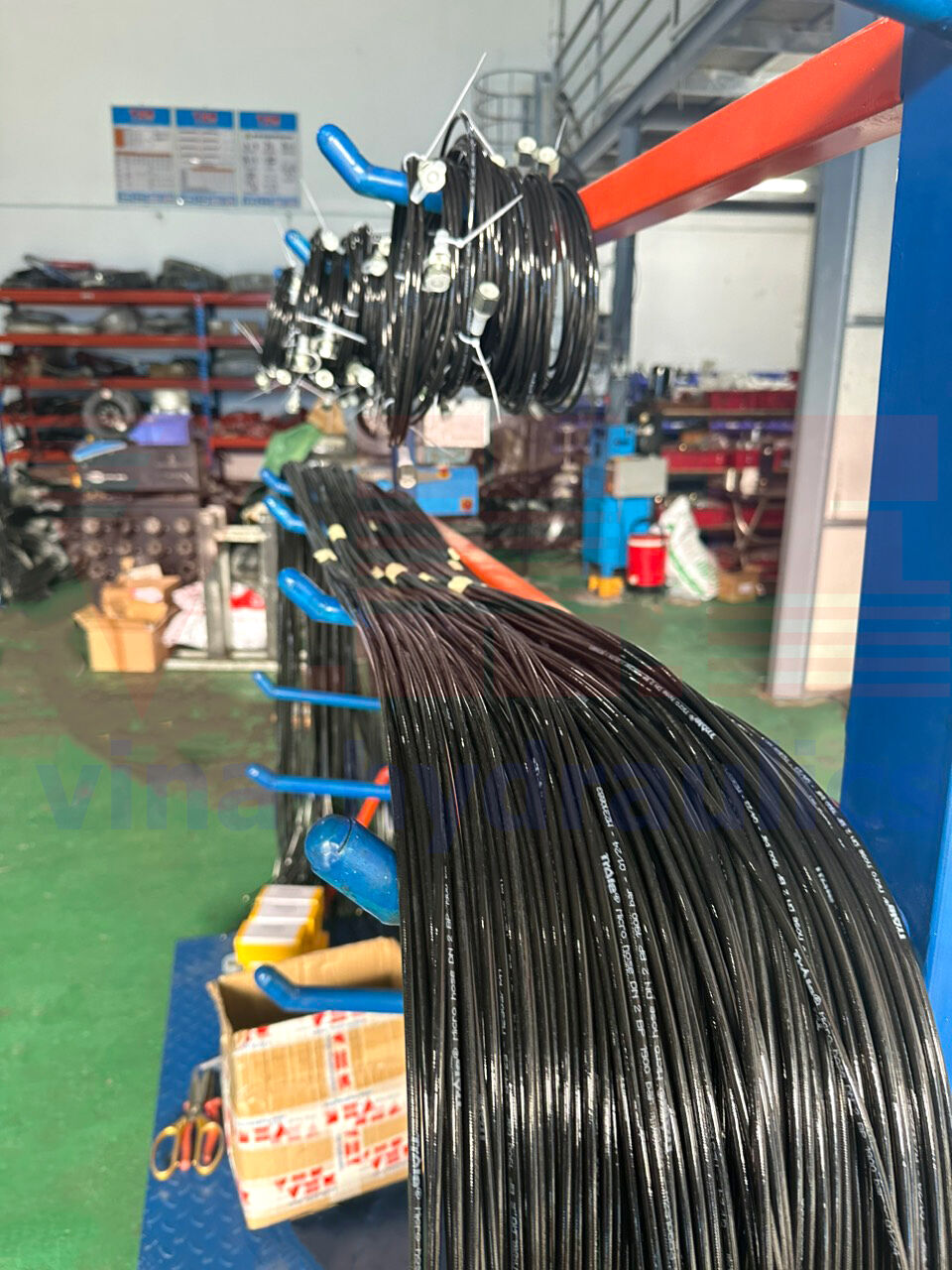

Ống Micro Hose giá rẻ

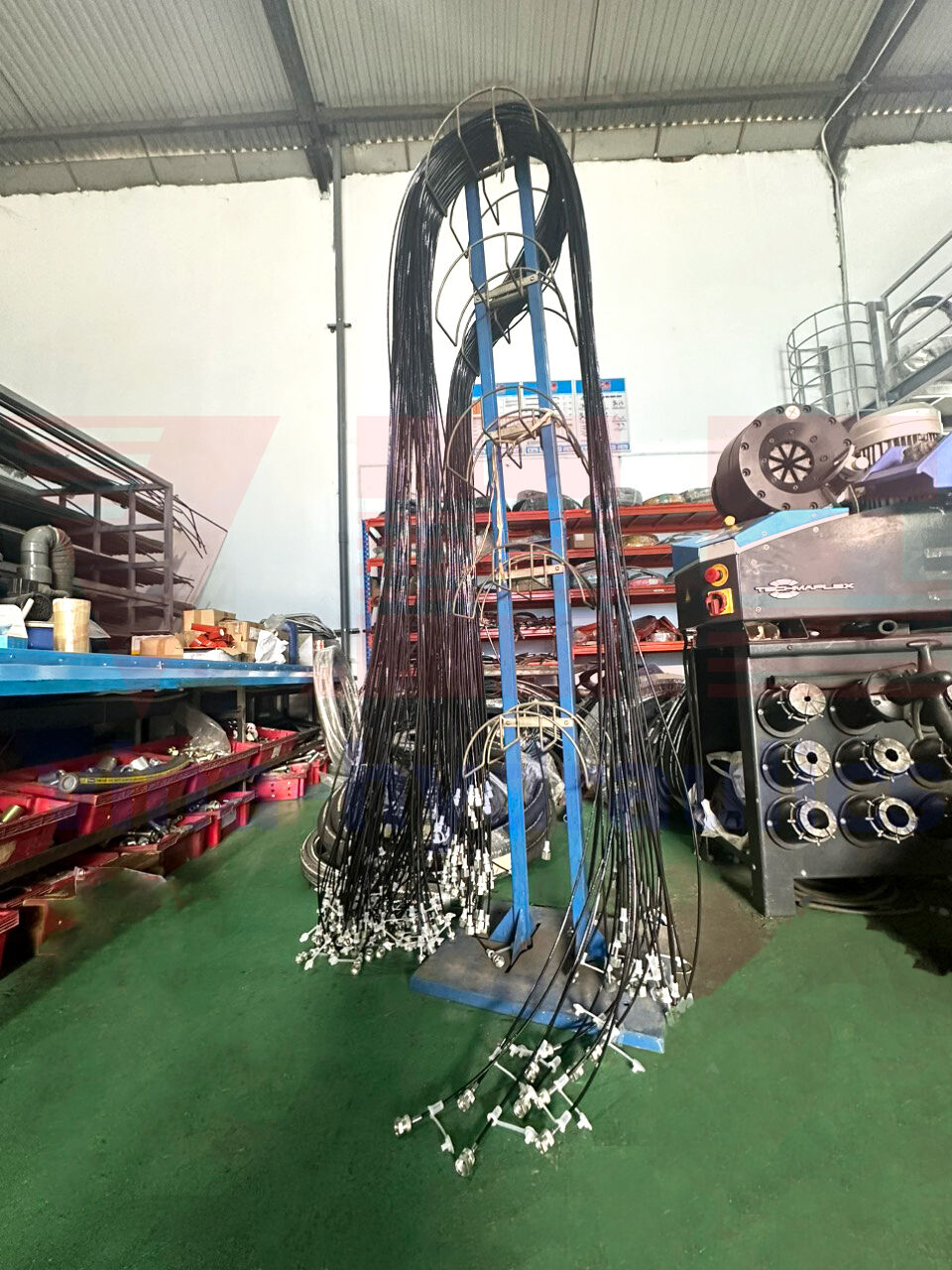

dây kiểm tra áp suất

Nơi chuyên cung cấp ống Micro Hose chính hãng

VHE hiện nay đang là đại lý chuyên phân phối Ống thủy lực Micro Hose tới từ thương hiêu Dicsa có xuất xứ tại Tây Ban Nha. Công ty đang có sẵn các loại ống test point với kích cỡ đường kính trong từ 5/64" (2mm), 1/8" (3mm), 5/32" (4mm).

Liên hệ ngay với VHE để được tư vấn và báo giá trong hôm nay!

- Hỗ trợ tư vấn & Giải đáp thắc mắc: 0903 967 588 - 0903 067 588

- Email hỗ trợ: [email protected]

- Địa chỉ: 127 Huy Cận, Khu dân cư Gia Hòa, Phường Phước Long B, TP. Thủ Đức, Việt Nam
